V3A-4K
ObsoleteOmron Electronics Inc-EMC Div

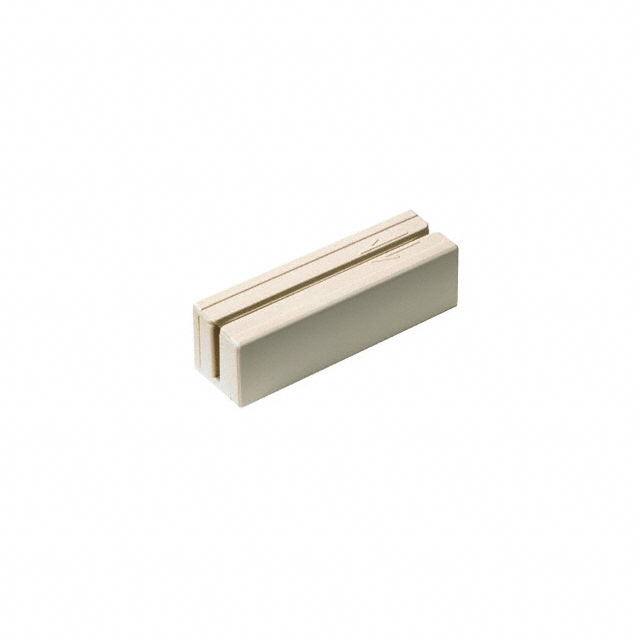

MAG CARD READER SWIPE TRK2 W/CVR
V3A-4K
ObsoleteOmron Electronics Inc-EMC Div
MAG CARD READER SWIPE TRK2 W/CVR
Description
General part information
V3A-4K
MAG CARD READER SWIPE TRK2 W/CVR
Technical Specifications
Parameters and characteristics for this part
| Specification | V3A-4K |
|---|---|
| Card Read/Write Type | Read |
| Card Reader Type | Magnetic - Swipe |
| Card Reading Direction | Swipe (Single Direction) |
| Card Speed (Max) | 120 cm/s |
| Card Speed (Min) | 100 mm/s |
| Card Standard | ISO 7811-1 ~ 6, ISO 7810 |
| Interface | TTL |
| Read Track Count | 2 tracks |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
