Description
General part information

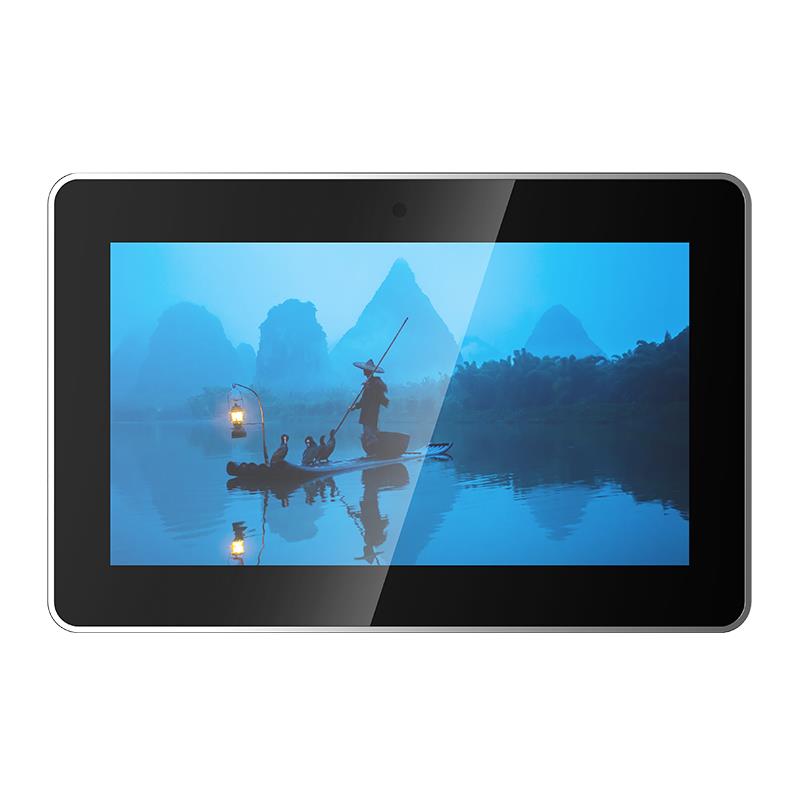

ED-HMI3010-070C-0000
Single Board Computer Core RAM
Technical Specifications
Parameters and characteristics for this part
| Specification | ED-HMI3010-070C-0000 |
|---|---|
| Case Color | Gray, Black |
| Display Size | 7 in |
| Display Type | Color |
| Features | Expansion Interface, Based On Raspberry Pi 5, Dual 4Kp60 HDMI Display Output |
| For Use With/Related Products | Raspberry Pi 5, 4555-ED-HMI2120-101C-1208-ND, 2648-SC1111-ND, 2648-SC1112-ND, 2648-SC1111-ND; 2648-SC1112-ND; 2648-SC1112-ND; 4555-ED-HMI2120-101C-1208-ND |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP69 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C, -25 °C |
| Type | Touchscreen |
| Voltage - Supply | 5 VDC |
