262B6
ActiveHammond Manufacturing

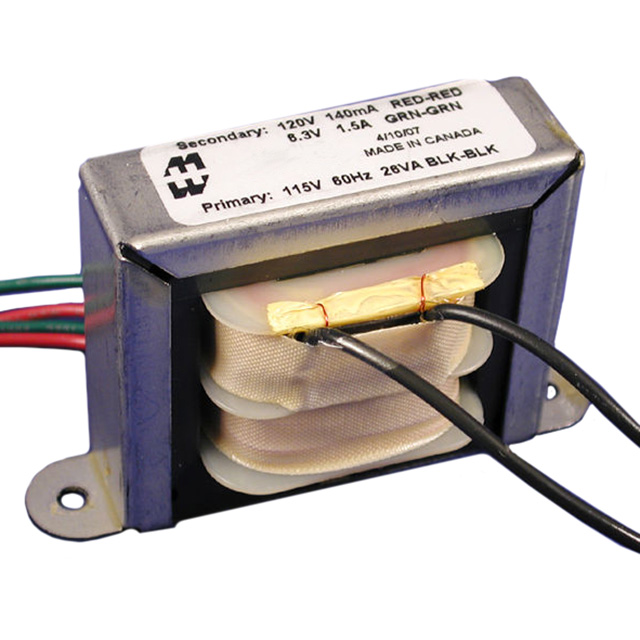

PWR XFMR LAMINATED 7VA CHAS MT
262B6
ActiveHammond Manufacturing
PWR XFMR LAMINATED 7VA CHAS MT
Description
General part information
262B6
PWR XFMR LAMINATED 7VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | 262B6 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Options | 300mA, 43mA |
| Height - Seated (Max) | 42.67 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 7 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 71.37 mm |
| Size / Dimension Width | 38.1 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 6.3V, 120V |
| Voltage - Secondary (Full Load) (Option 1) | 120 V, 120 V |
| Voltage - Secondary (Full Load) (Option 2) | 6.3 V, 6.3 V |
| Weight | 0.6 lb |
