FMAD1652
ActiveFairview Microwave
ADAPT JACK-JACK 2.92MM SS 1.15 V
FMAD1652
ActiveFairview Microwave
ADAPT JACK-JACK 2.92MM SS 1.15 V
Description
General part information
FMAD1652

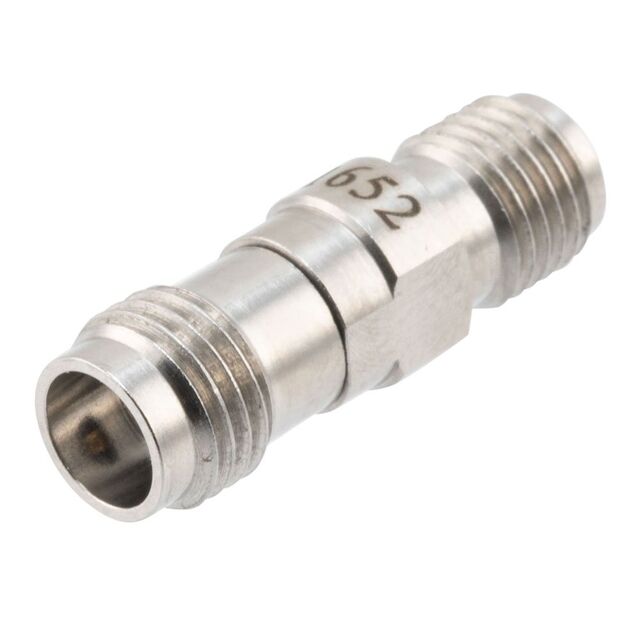

Adapter Coaxial Connector 1.85mm Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1652 |
|---|---|
| Adapter Series Size | 2.92 mm, 1.85 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) Jack Size | 1.85 mm |
| Convert From (Adapter End) Type | Female Socket |
| Convert To (Adapter End) | Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Model | OS-2.9 |
| Convert To (Adapter End) Size | 2.92 mm |
| Convert To (Adapter End) Type | Jack |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Impedance | 50 Ohm |
| Insertion Loss | 0.32 dB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Straight |
