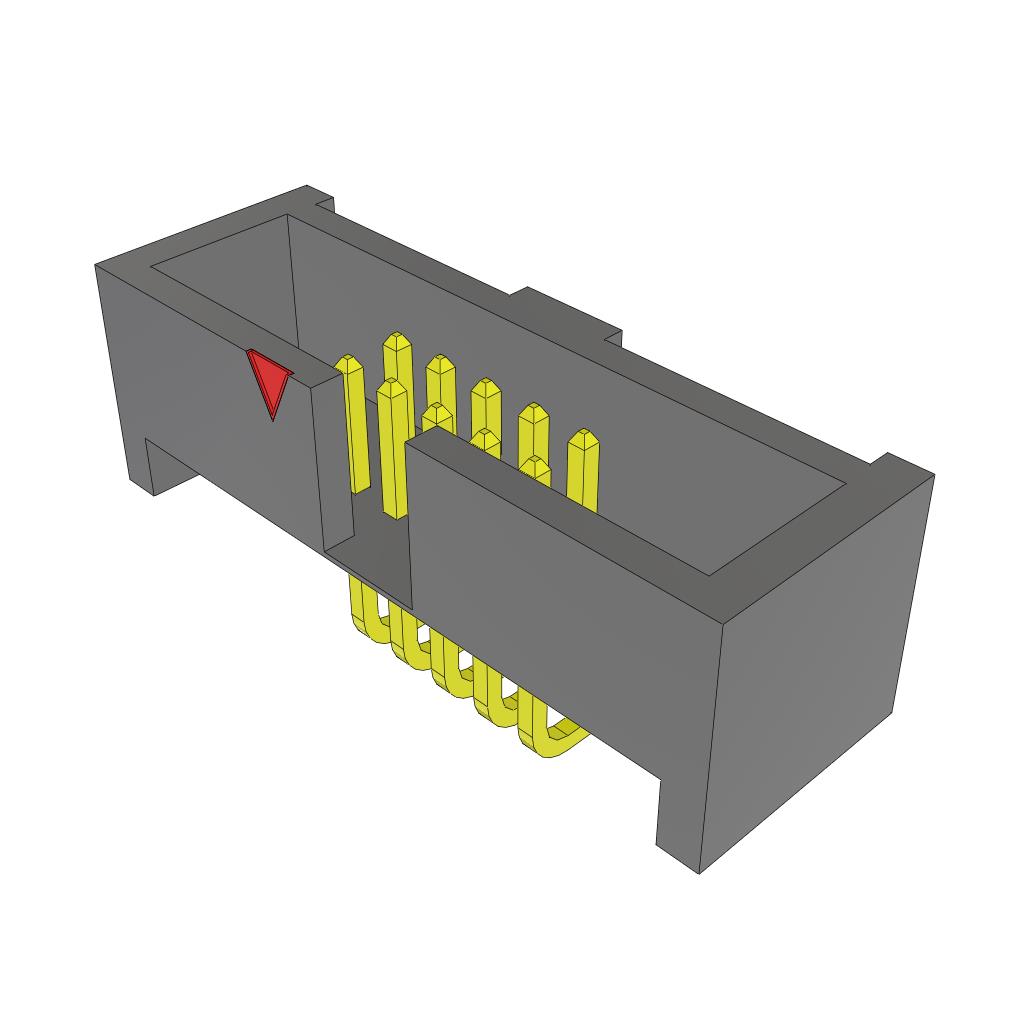

ESHF-105-01-L-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .050" Shrouded Header For FFSD With Strain Relief +1

ESHF-105-01-L-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 10 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

DocumentsDatasheet .050" Shrouded Header For FFSD With Strain Relief +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESHF-105-01-L-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	2.16 mm
Contact Length - Post	0.085 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

ESHF-105 Series

Part	Contact Finish - Post	Contact Type	Mounting Type	Termination	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Rows	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Style	Insulation Material	Connector Type	Shrouding	Features	Insulation Height	Insulation Height	Contact Finish - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Insulation Height
Samtec Inc. ESHF-105-01-F-D-TH	Tin	Male Pin	Through Hole	Solder	0.075 in	1.91 mm	3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm	Flash	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Keying Slot	5.33 mm	0.21 in	Gold	Black	-55 °C	125 °C	Phosphor Bronze	All
Samtec Inc. ESHF-105-01-L-D-RA-TR	Tin	Male Pin	Through Hole Right Angle	Solder		2.16 mm	3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm		Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Keying Slot	5.6 mm	0.22 in	Gold	Black	-55 °C	125 °C	Phosphor Bronze	All	10 çin	0.25 çm	0.085 in
Samtec Inc. ESHF-105-01-L-D-SM-LC-TR	Tin	Male Pin	Surface Mount	Solder			3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm		Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Board Lock Keying Slot	5.45 mm		Gold	Black	-55 °C	125 °C	Phosphor Bronze	All	10 çin	0.25 çm		0.215 in
Samtec Inc. ESHF-105-01-S-D-TH	Tin	Male Pin	Through Hole	Solder	0.075 in	1.91 mm	3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm		Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Keying Slot	5.33 mm	0.21 in	Gold	Black	-55 °C	125 °C	Phosphor Bronze	All
Samtec Inc. ESHF-105-01-L-D-SM-LC	Tin	Male Pin	Surface Mount	Solder			3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm		Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Board Lock Keying Slot	5.45 mm		Gold	Black	-55 °C	125 °C	Phosphor Bronze	All	10 çin	0.25 çm		0.215 in
Samtec Inc. ESHF-105-01-L-D-SM-TR	Tin	Male Pin	Surface Mount	Solder			3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm		Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Keying Slot	5.45 mm		Gold	Black	-55 °C	125 °C	Phosphor Bronze	All	10 çin	0.25 çm		0.215 in
Samtec Inc. ESHF-105-01-S-D-SM-LC	Tin	Male Pin	Surface Mount	Solder			3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm		Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Board Lock Keying Slot	5.45 mm		Gold	Black	-55 °C	125 °C	Phosphor Bronze	All				0.215 in
Samtec Inc. ESHF-105-01-F-D-SM-TR	Tin	Male Pin	Surface Mount	Solder			3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm	Flash	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Keying Slot	5.45 mm		Gold	Black	-55 °C	125 °C	Phosphor Bronze	All				0.215 in
Samtec Inc. ESHF-105-01-F-D-SM-K-TR	Tin	Male Pin	Surface Mount	Solder			3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm	Flash	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Keying Slot Pick and Place	5.45 mm		Gold	Black	-55 °C	125 °C	Phosphor Bronze	All				0.215 in
Samtec Inc. ESHF-105-01-L-D-RA	Tin	Male Pin	Through Hole Right Angle	Solder		2.16 mm	3.05 mm	0.12 in	Square	2	10	Push-Pull	0.05 in	1.27 mm	0.05 in	1.27 mm		Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	Keying Slot	5.6 mm	0.22 in	Gold	Black	-55 °C	125 °C	Phosphor Bronze	All	10 çin	0.25 çm	0.085 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.81
		50	$ 3.11
		100	$ 2.64
		500	$ 2.34
Digikey	Tube	34	$ 3.90
