796681-2

Active

TE Connectivity AMP Connectors

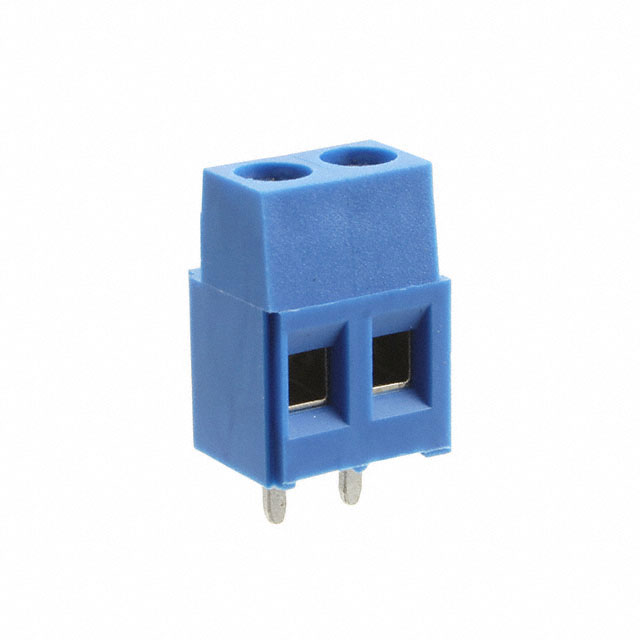

TERM BLK 2POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796681-2

Active

TE Connectivity AMP Connectors

TERM BLK 2POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796681-2	796681 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Blue	Blue
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	2	2 - 12
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

796681 Series

TERM BLK 3POS SIDE ENTRY 5MM PCB

Part	Color	Torque - Screw	Torque - Screw	Number of Levels	Features	Mating Orientation	Positions Per Level	Mounting Type	Current	Contact Material - Plating [custom]	Screw Material - Plating	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]	Voltage	Clamp Material - Plating	Screw Thread
TE Connectivity AMP Connectors 796681-3	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	3	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 1-796681-2	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	12	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-6	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	6	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-5	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	5	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-2	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	2	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-9	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	9	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-4	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	4	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.05
		10	$ 1.00
		25	$ 0.95
		50	$ 0.94
		100	$ 0.82
		300	$ 0.79
		600	$ 0.75
		1200	$ 0.65
		5100	$ 0.55

Description

General part information

796681 Series

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
