97R06ST

Active

Grayhill Inc.

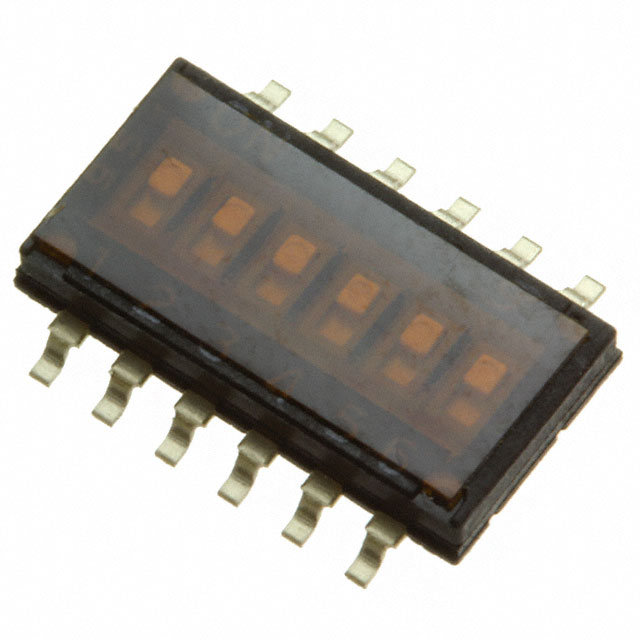

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Circuit	Features	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Pitch [x]	Pitch [x]	Actuator Level	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Washable	Body Material	Mechanical Life	Termination Style	Mounting Type	Number of Positions	Contact Material	Contact Finish	Actuator Type
Grayhill Inc. 97R06ST	SPST	Tape Seal	85 °C	-40 °C	8.85 mm	0.348 in	0.05 in	1.27 mm	Flush, Recessed	25 mA	0.061 "	1.55 mm	24 VDC		Nylon, Polyamide (PA)	1000 Cycles	Gull Wing	Surface Mount	6	Copper Alloy	Gold	Slide (Standard)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	108	$ 3.90

General part information

Dip Switch SPST 6 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
