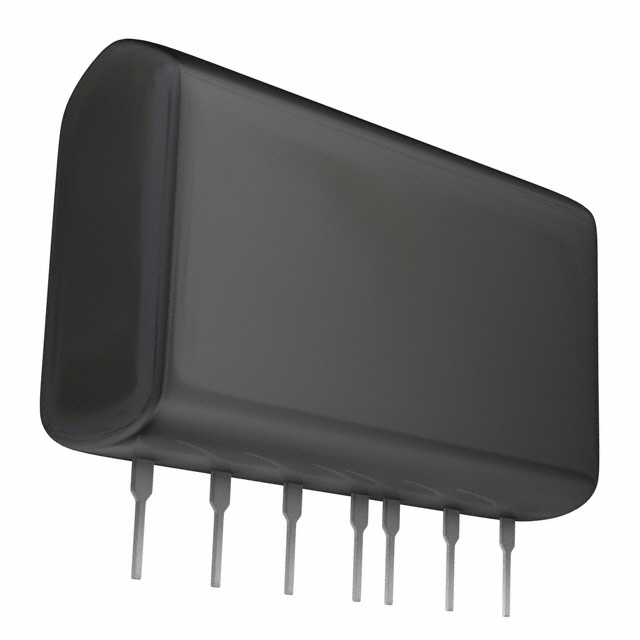

BP5062A
ObsoleteRohm Semiconductor
AC/DC CONVERTER -12V 6W
BP5062A
ObsoleteRohm Semiconductor
AC/DC CONVERTER -12V 6W
Description
General part information
BP5062A
Enclosed AC DC Converters 1 Output -12V 500mA 80 ~ 127 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BP5062A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 83 % |
| Line Regulation | 50 mV |
| Load Regulation (mV) | 70 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 7 Leads |
| Package Name | 12-SIP Module |
| Power (Watts) | 6 W |
| Size / Dimension Height | 0.85 in |
| Size / Dimension Length | 1.36 in |
| Size / Dimension Width | 0.39 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 127 VAC |
| Voltage - Input (AC) Minimum | 80 V |
| Voltage - Output 1 | -12 V |
