Description
General part information

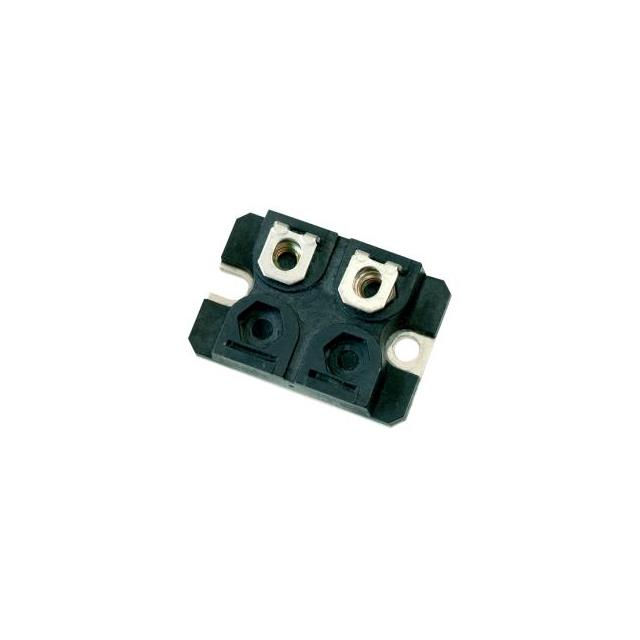

FPA100 6R8 J
6.8 Ohms ±5% 100W Thick Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | FPA100 6R8 J |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive |
| Height - Seated (Max) | 0.492 in |
| Lead Style | M4 Threaded |
| Mounting Feature | Screw Holes |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOT-227-2 |
| Power (Watts) | 100 W |
| Resistance | 6.8 Ohm |
| Size / Dimension Length | 1.516 in |
| Size / Dimension Width | 1 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
