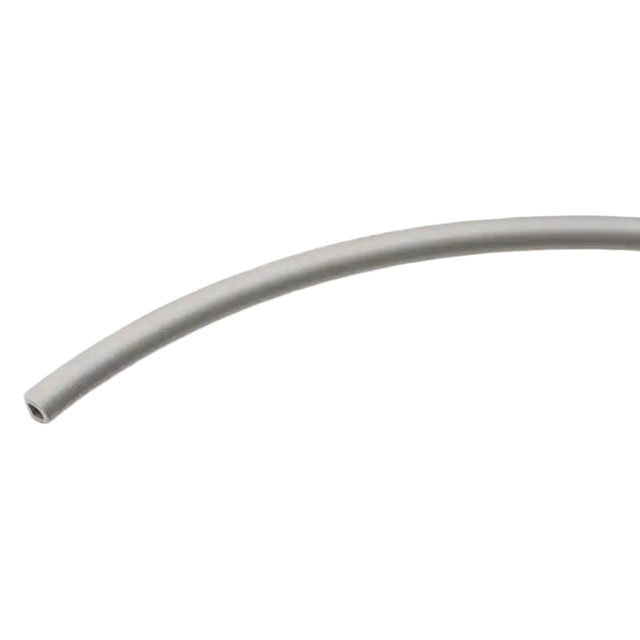

10-05-6419-6502

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL

Search across all available documentation for this part.

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL

Technical Specifications

Parameters and characteristics commom to parts in this series

RF EMI GASKET 12" X 0.156"

Part	Shape	Thickness - Overall	Thickness - Overall	Operating Temperature [Max]	Operating Temperature [Min]	Type	Width [y]	Width [y]	Width [x]	Width [x]	Height [diameter]	Height [diameter]	Material	Attachment Method	Plating	Thickness - Overall [z]	Thickness - Overall [z]	Height [z]	Height [z]
Parker Chomerics 10-05-6419-1298	D-Shape	3.96 mm	0.156 in	66 °C	-29 °C	Gasket	3.96 mm	0.156 in
Parker Chomerics 10-05-4308-S6305	D-Shape			66 °C	-29 °C	Gasket			7.92 mm	0.312 "	0.312 in	7.92 mm	Conductive Elastomer	No Adhesive	Nickel
Parker Chomerics 10-05-4308-1298	D-Shape			66 °C, 200 °C	-55 °C, -29 °C	Gasket			7.92 mm	0.312 "						0.312 in	7.92 mm
Parker Chomerics 10-05-4308-6502	D-Shape			66 °C	-29 °C	Gasket			7.92 mm	0.312 "	0.312 in	7.92 mm	Conductive Elastomer	No Adhesive	Nickel
Parker Chomerics 10-05-6419-6502	D-Shape			66 °C	-29 °C	Gasket	3.96 mm	0.156 in					Conductive Elastomer	No Adhesive	Nickel			3.96 mm	0.156 in
Parker Chomerics 10-05-6419-S6305	D-Shape			66 °C	-29 °C	Gasket	3.96 mm	0.156 in					Conductive Elastomer	No Adhesive	Nickel			3.96 mm	0.156 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 13.27
