A15959-08
ObsoleteLaird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM GRAY
A15959-08
ObsoleteLaird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM GRAY
Description
General part information
A15959 Series

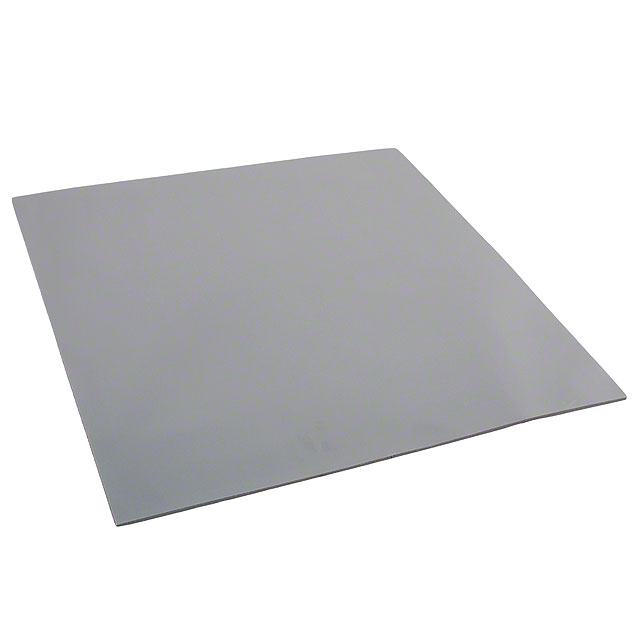

Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - Both Sides
Technical Specifications
Parameters and characteristics for this part
| Specification | A15959-08 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Color | Gray |
| Material | Silicone Elastomer |
| Outline Length | 228.6 mm |
| Outline Width | 228.6 mm |
| Shape | Square |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Shipment |
| Thermal Conductivity | 1.8 W/m-K |
| Thickness | 0.08 in |
| Type | Gap Filler Pad, Sheet |
