Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.22 | |
| 10 | $ 8.42 | |||
| 25 | $ 7.92 | |||
| 50 | $ 7.22 | |||
| 100 | $ 7.12 | |||
| 250 | $ 7.02 | |||
| 500 | $ 6.56 | |||
General part information

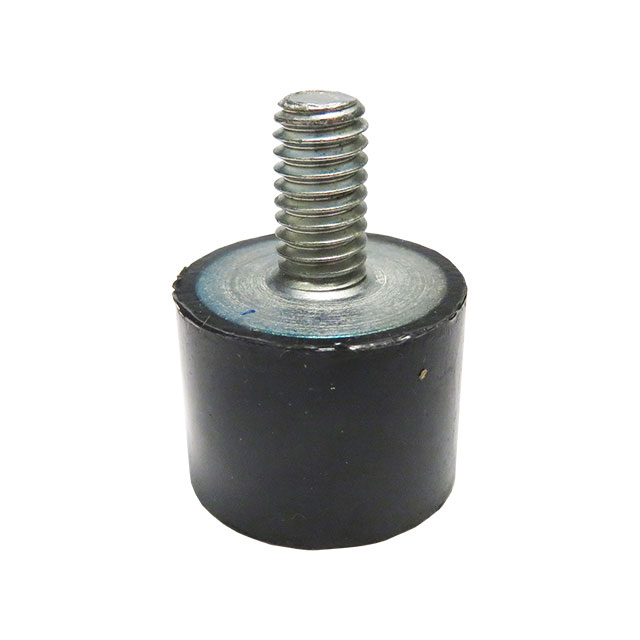

Round Standoff Threaded 5/16"-18 Synthetic Rubber 0.750" (19.05mm) 3/4" Black
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | MF-400-UC31-H | MF-400 Series |
|---|---|---|
| Between Board Height | 0.75 in | 0.75 in |
| Between Board Height | 0.75 in | 0.75 in |
| Between Board Height | 19.05 mm | 19.05 mm |
| Color | Black | Black |
| Diameter - Outside [diameter] | 25.4 mm | 25.4 mm |
| Diameter - Outside [diameter] | 1 in | 1 in |
| Features | Vibration Dampening | Vibration Dampening |
| Gender | Male, Female | Male, Female |
| Length - Overall | 34.93 mm | 34.93 mm |
| Length - Overall | - | |
| Length - Overall | 1.375 " | 1.375 " |
| Material | Synthetic Rubber | Synthetic Rubber |
| Screw, Thread Size | 18, 0.3125 in | 0.3125 - 18 |
| Threaded/Unthreaded | Threaded | Threaded |
| Type | Round Standoff | Round Standoff |
RND STNDFF 5/16"-18 SYN RUB 3/4"
| Part | Features | Threaded/Unthreaded | Screw, Thread Size | Type | Between Board Height | Between Board Height | Between Board Height | Gender | Color | Material | Length - Overall | Length - Overall | Length - Overall | Diameter - Outside [diameter] | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aearo Technologies LLC, a 3M company MF-400-UC31-SL20300 | Vibration Dampening | Threaded | 0.3125 in, 18 | Round Standoff | 0.75 in | 0.75 in | 19.05 mm | Female, Male | Black | Synthetic Rubber | 34.93 mm | 1.375 " | 25.4 mm | 1 in | |
Aearo Technologies LLC, a 3M company MF-400-UC31-H | Vibration Dampening | Threaded | 0.3125 in, 18 | Round Standoff | 0.75 in | 0.75 in | 19.05 mm | Female, Male | Black | Synthetic Rubber | 34.93 mm | 1.375 " | 25.4 mm | 1 in |
