Description
General part information

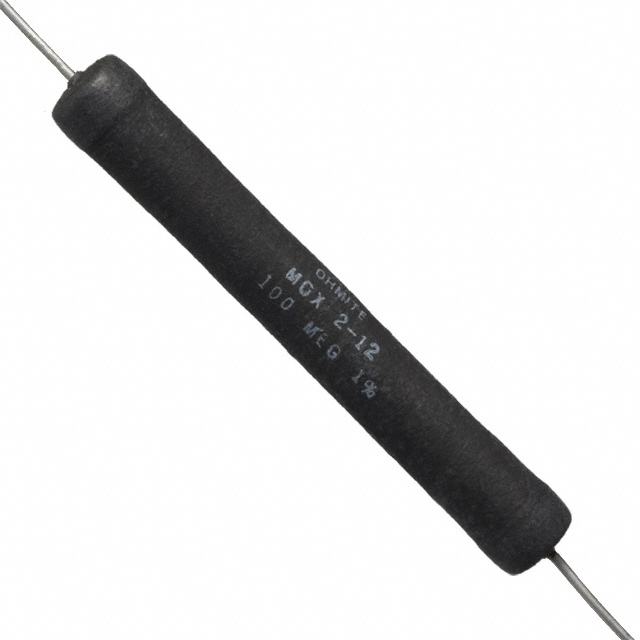

MOX-2-12-1006F
100 MOhms ±1% 5W Through Hole Resistor Axial High Voltage Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MOX-2-12-1006F |
|---|---|
| Composition | Thick Film |
| Features | High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 210 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 5 W |
| Resistance | 100 MOhm |
| Size / Dimension Diameter | 0.31 in |
| Size / Dimension Length | 2.12 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 1 % |
