MS226-10F
ActiveMasach Tech Ltd.

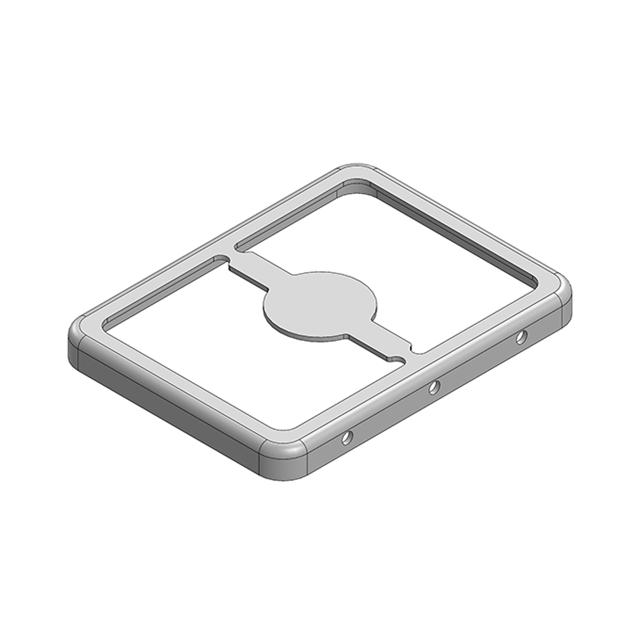

22.6 X 17.1 X 2MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)
Deep-Dive with AI
Search across all available documentation for this part.
MS226-10F
ActiveMasach Tech Ltd.
22.6 X 17.1 X 2MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS226-10F |
|---|---|
| Height - Overall [z] | 0.079 in |
| Height - Overall [z] | 2 mm |
| Length - Overall [x] | 22.6 mm |
| Length - Overall [x] | 0.89 in |
| Mounting Type | Solder |
| Type | Frame |
| Width - Overall [y] | 0.673 " |
| Width - Overall [y] | 17.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.07 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.08 | |||
| 90 | $ 0.87 | |||
| 270 | $ 0.73 | |||
| 450 | $ 0.68 | |||
| 990 | $ 0.61 | |||
| 2430 | $ 0.55 | |||
| 4950 | $ 0.51 | |||
Description
General part information
MS226 Series
RF Shield Frame 0.673" (17.10mm) X 0.890" (22.60mm) Solder
Documents
Technical documentation and resources
