N3314-6202RB

Active

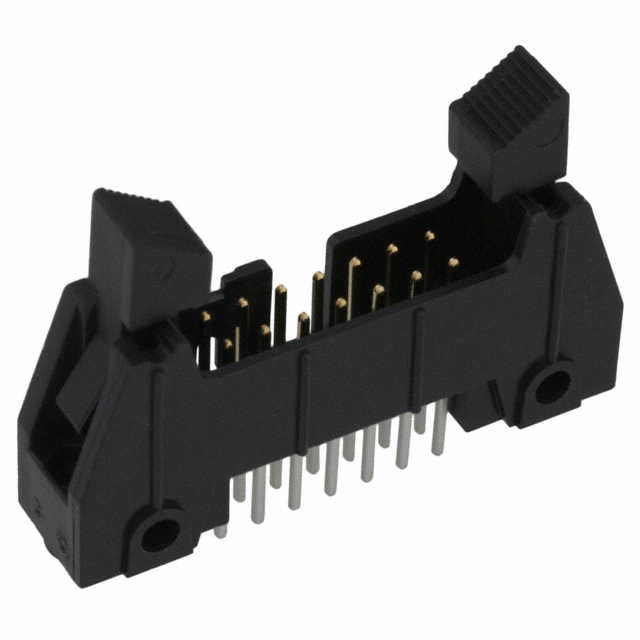

WIRE-TO-BOARD CONNECTOR, SHORT LATCH, 3000 SERIES, THROUGH HOLE, HEADER, 14, 2.54 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3314-6202RB

Active

WIRE-TO-BOARD CONNECTOR, SHORT LATCH, 3000 SERIES, THROUGH HOLE, HEADER, 14, 2.54 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3314-6202RB	N3314 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead, Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Finish Thickness - Post	-	Flash
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 15.49 mm
Contact Length - Post	0.112 in	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long, Push-Pull
Insulation Color	Black	Black, Beige
Insulation Height	17.27 mm	7.87 - 17.4 mm
Insulation Height	0.68 in	0.31 - 0.685 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	14	14
Number of Positions	-	14
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.652 in	0.652 - 1.15 in
Overall Contact Length	16.56 mm	16.56 - 29.21 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 3 Wall, Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire, Board to Board, Cable
Termination	Solder	Solder, Wire Wrap

N3314 Series

CONN HEADER VERT 14POS 2.54MM

Part	Number of Positions Loaded	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Shrouding	Termination	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Fastening Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Material	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Style	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish Thickness - Post
3M N3314-2202RB	All	1.75 A	Header	Gold	Shrouded - 3 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin	Latch Lock/Eject Hooks, Short	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C	0.652 in	16.56 mm	Through Hole	Copper Alloy	2.84 mm	0.112 in	6.1 mm	0.24 in	200 µin	5.08 µm	17.27 mm	0.68 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-5302	All	1.75 A	Header	Gold	Shrouded - 4 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin-Lead	Latch Lock/Eject Hooks, Long	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C			Through Hole, Right Angle	Copper Alloy	2.84 mm	0.112 in	6.1 mm	0.24 in	200 µin	5.08 µm	8.64 mm	0.34 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-6503	All	1.75 A	Header	Gold	Shrouded - 4 Wall	Solder	Beige	2	0.1 in	2.54 mm	Square	Tin-Lead	Latch Lock/Eject Hooks, Short	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C	0.695 in	17.65 mm	Through Hole	Copper Alloy	3.94 mm	0.155 "	6.1 mm	0.24 in	200 µin	5.08 µm	17.27 mm	0.68 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-6202RB	All	1.75 A	Header	Gold	Shrouded - 4 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin	Latch Lock/Eject Hooks, Short	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C	0.652 in	16.56 mm	Through Hole	Copper Alloy	2.84 mm	0.112 in	6.1 mm	0.24 in	200 µin	5.08 µm	17.27 mm	0.68 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-5002RB	All	1.75 A	Header	Gold	Shrouded - 4 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C			Through Hole, Right Angle	Copper Alloy	2.84 mm	0.112 in	6.1 mm	0.24 in	200 µin	5.08 µm	8.64 mm	0.34 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-6205	All		Header	Gold	Shrouded - 4 Wall	Wire Wrap	Black	2	0.1 in	2.54 mm	Square	Gold	Latch Lock/Eject Hooks, Short	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	105 ░C	-55 °C	1.15 in	29.21 mm	Through Hole	Copper Alloy	15.49 mm	0.61 in	6.1 mm	0.24 in			17.27 mm	0.68 in	Board to Board, Cable	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0	Flash
3M N3314-1303RB	All	1.75 A	Header	Gold	Shrouded - 3 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin	Latch Lock/Eject Hooks, Long	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C			Through Hole, Right Angle	Copper Alloy	3.94 mm	0.155 "	6.1 mm	0.24 in	200 µin	5.08 µm	7.87 mm	0.31 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-5202RB	All	1.75 A	Header	Gold	Shrouded - 4 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin	Latch Lock/Eject Hooks, Short	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C			Through Hole, Right Angle	Copper Alloy	2.84 mm	0.112 in	6.1 mm	0.24 in	200 µin	5.08 µm	8.64 mm	0.34 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-6203RB	All	1.75 A	Header	Gold	Shrouded - 4 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin	Latch Lock/Eject Hooks, Short	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C	0.695 in	17.65 mm	Through Hole	Copper Alloy	3.94 mm	0.155 "	6.1 mm	0.24 in	200 µin	5.08 µm	17.27 mm	0.68 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0
3M N3314-2302RB	All	1.75 A	Header	Gold	Shrouded - 3 Wall	Solder	Black	2	0.1 in	2.54 mm	Square	Tin	Latch Lock/Eject Hooks, Long	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C	0.652 in	16.56 mm	Through Hole	Copper Alloy	2.84 mm	0.112 in	6.1 mm	0.24 in	200 µin	5.08 µm	17.27 mm	0.68 in	Board to Cable/Wire	14	2.54 mm	0.1 in	Male Pin	30 Áin	0.76 Ám	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.17
		10	$ 2.88
		350	$ 2.22
		700	$ 2.16
		1050	$ 1.84
		5250	$ 1.65
Newark	Each	1	$ 2.99
		10	$ 2.87
		25	$ 2.65
		50	$ 2.50
		100	$ 2.39
		250	$ 2.11
		500	$ 2.04
		1000	$ 1.74

Description

General part information

N3314 Series

Connector Header Through Hole 14 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
