VS-402CNQ200PBF
ActiveVishay General Semiconductor - Diodes Division
DIODE MOD SCHOTT 200V 551A TO244
VS-402CNQ200PBF
ActiveVishay General Semiconductor - Diodes Division
DIODE MOD SCHOTT 200V 551A TO244
Description
General part information
VS-402CNQ200PBF
Diode Array 1 Pair Common Cathode 200 V 551A Chassis Mount TO-244AB
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-402CNQ200PBF |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 551 A |
| Current - Reverse Leakage | 200 µA |
| Diode Configuration | Common Cathode |
| Diode Pair Count | 1 pair |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction (Max) | 175 °C |
| Operating Temperature - Junction (Min) | -40 °C |

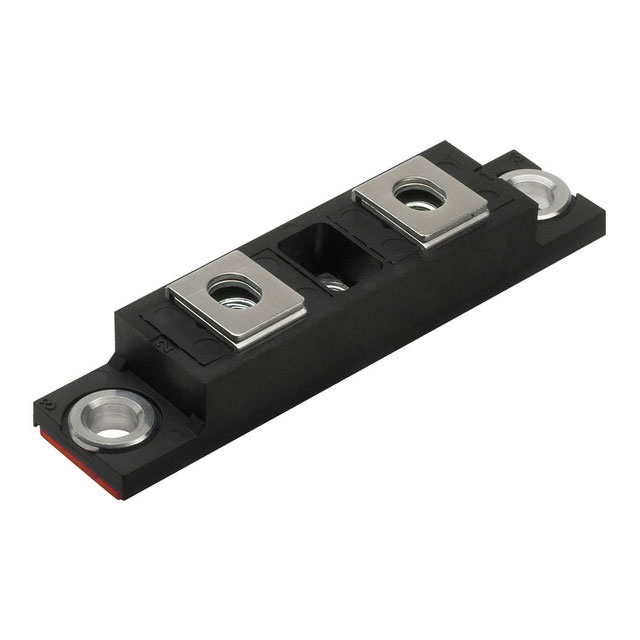

| Package / Case | TO-244AB |
| Package Name | TO-244 |
| Reverse Recovery Time (trr) | 132 ns |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) | 1.358 V, 1.358 V |
