0003062151

Obsolete

Molex

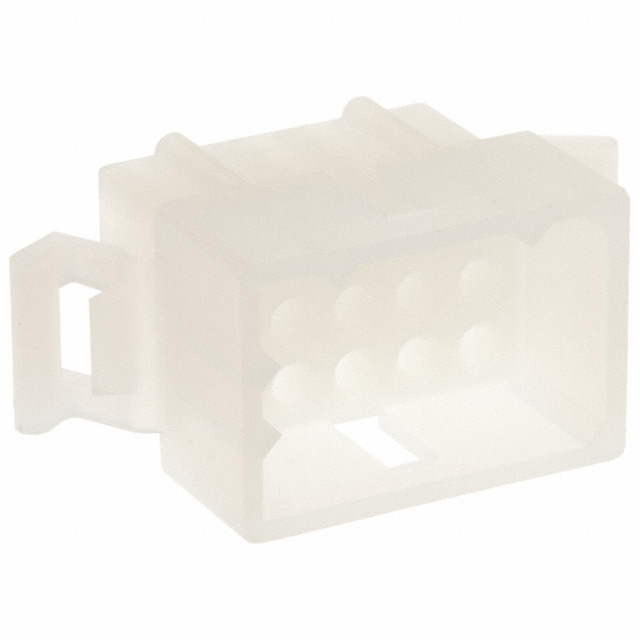

CONN PLUG HSG 15POS 3.68MM

Search across all available documentation for this part.

Obsolete

Molex

CONN PLUG HSG 15POS 3.68MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Rectangular Connectors - Housings Plug Natural 0.145" (3.68mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0003062151	000306 Series

	-	-
Color	Natural	Natural, Black
Connector Type	Plug	Plug, Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Male or Female
Fastening Type	Detent Lock	Detent Lock, Locking Ramp, Latch Holder
Insulation Material	-	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	1 - 36
Number of Rows	3	1 - 3
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Pitch [x]	3.68 mm	3.68 - 4.2 mm
Pitch [x]	0.145 in	0.145 - 0.165 in
Row Spacing	3.68 mm	3.68 - 4.2 mm
Row Spacing	0.145 in	0.145 - 0.165 in

CONN PLUG HSG 15POS 3.68MM

Part	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Note	Fastening Type	Contact Termination	Row Spacing	Row Spacing	Number of Positions	Color	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material
Molex 0003062151	3.68 mm	0.145 in	3	Plug	Contacts Not Included	Detent Lock	Crimp	3.68 mm	0.145 in	15	Natural	Male or Female	Panel Mount, Snap-In
Molex 0003061061	3.68 mm	0.145 in	3	Receptacle	Contacts Not Included	Locking Ramp	Crimp	3.68 mm	0.145 in	6	Natural	Male or Female	Panel Mount, Snap-In
Molex 0003061056	3.68 mm	0.145 in	1	Receptacle	Contacts Not Included	Locking Ramp	Crimp				Natural	Male or Female	Free Hanging (In-Line)
Molex 0003061024
Molex 0003061361	3.68 mm	0.145 in		Receptacle	Contacts Not Included	Locking Ramp	Crimp	3.68 mm	0.145 in	36	Natural	Male or Female	Panel Mount, Snap-In
Molex 0003062033	3.68 mm	0.145 in	1	Plug	Contacts Not Included	Detent Lock	Crimp				Natural	Male or Female	Panel Mount, Snap-In	-40 °C	105 ░C	Polyamide (PA66), Nylon 6/6
Molex 0003061041	3.68 mm	0.145 in	1	Receptacle	Contacts Not Included	Locking Ramp	Crimp			4	Natural	Male or Female	Panel Mount, Snap-In
Molex 0003062121	3.68 mm	0.145 in	3	Plug	Contacts Not Included	Detent Lock	Crimp	3.68 mm	0.145 in	12	Natural	Male or Female	Panel Mount, Snap-In	-40 °C	105 ░C	Polyamide (PA66), Nylon 6/6
Molex 0003061043	3.68 mm	0.145 in	2	Receptacle	Contacts Not Included	Locking Ramp	Crimp	3.68 mm	0.145 in	4	Natural	Male or Female	Panel Mount, Snap-In
Molex 0003062362	4.2 mm	0.165 in		Plug	Contacts Not Included		Crimp	4.2 mm	0.165 in	36	Natural	Male or Female	Panel Mount, Snap-In
