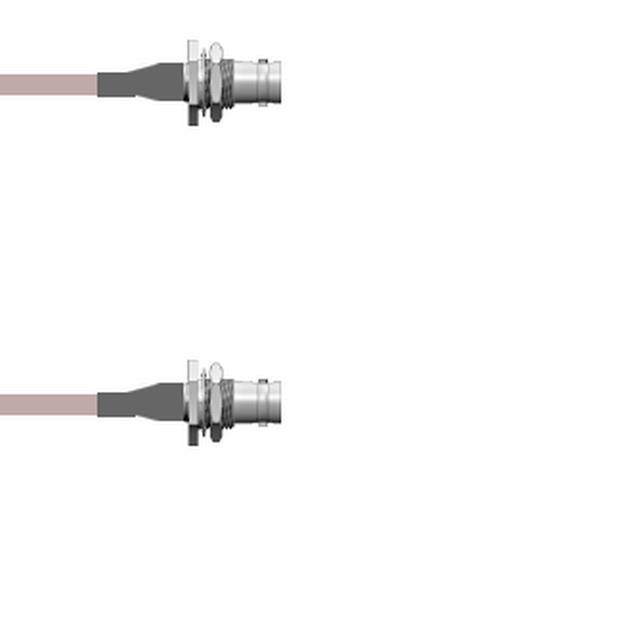

Q-0100100011.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO BNC 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO BNC 4.9'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0100100011.5M	Q-010010 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	BNC Jack	BNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	59.1 in	5 - 59.1 "
Length	4.9 ft	4.9 - 5 ft
Length	1.5 m	1.5 - 228.6 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to BNC	BNC to BNC

COAX CABLE BNC TO BNC 9"

Part	2nd Connector	Features	1st Connector	Overall Impedance	Frequency - Max [Max]	2nd Contact Gender	2nd Connector Mounting Type	Style	Length	Length	Color	1st Contact Gender	2nd Connector Mounting Feature	Cable Type	1st Connector Mounting Type	1st Connector Mounting Feature	Length
Amphenol Custom Cable Q-010010001009i	BNC Jack	Shielded	BNC Jack	50 Ohms	4 GHz	Female	Panel Mount	BNC to BNC	9 "	228.6 mm	Copper	Female	Bulkhead - Front Side Nut	RG-178	Panel Mount	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0100100011.5M	BNC Jack	Shielded	BNC Jack	50 Ohms	4 GHz	Female	Panel Mount	BNC to BNC	59.1 in	1.5 m	Copper	Female	Bulkhead - Front Side Nut	RG-178	Panel Mount	Bulkhead - Front Side Nut	4.9 ft
Amphenol Custom Cable Q-010010001060i	BNC Jack	Shielded	BNC Jack	50 Ohms	4 GHz	Female	Panel Mount	BNC to BNC	5 '	1.5 m	Copper	Female	Bulkhead - Front Side Nut	RG-178	Panel Mount	Bulkhead - Front Side Nut	5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to BNC RG-178 59.1" (1.5m) 4.9'

Technical documentation and resources

No documents available
