FMCN1359
ObsoleteFairview Microwave
CONN JACK SOLDER/SOLDER (CAPTIVE
FMCN1359
ObsoleteFairview Microwave
CONN JACK SOLDER/SOLDER (CAPTIVE
Description
General part information
FMCN1359

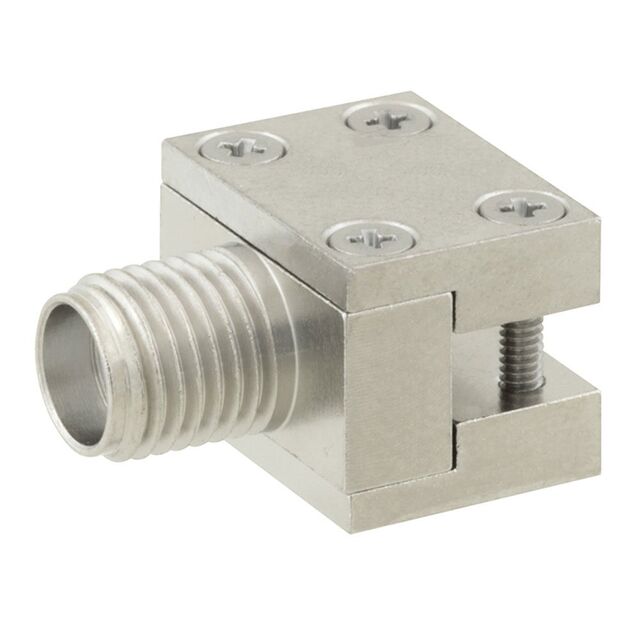

SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1359 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | Mounting Hardware |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | End Launch, Board Edge |
| Number of Ports | 1 |
| Shield Termination | Screw |
