2C30DL
ActiveAltech Corporation

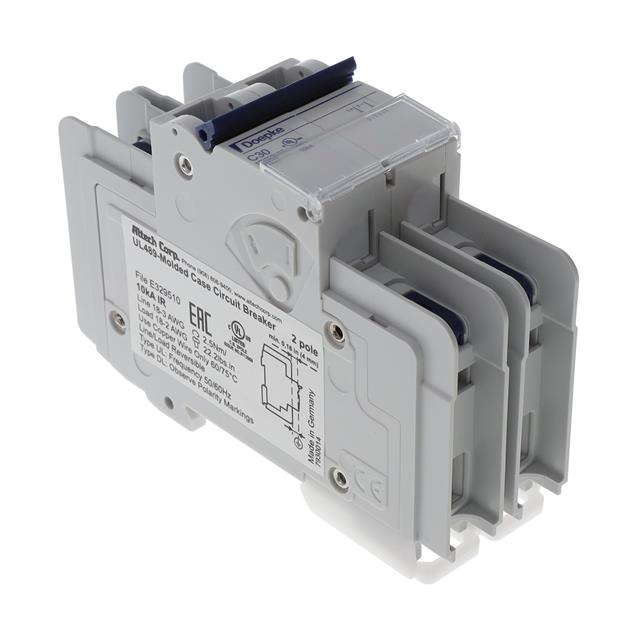

2C30DL 30A CIRCUIT BREAKER C CHA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2C30DL | 2C30 Series |
|---|---|---|
| Actuator Type | Lever | Lever |
| Approval Agency | UL489, CE, cULus | UL1077, CE, cURus, UL489, cULus |
| Breaker Type | Thermal Magnetic | Thermal Magnetic |
| Current Rating (Amps) | 30 A | 30 A |
| Illumination | None | None |
| Mounting Type | DIN Rail | DIN Rail |
| Number of Poles | 2 | 2 |
| Voltage Rating - AC | - | 480 V |
| Voltage Rating - DC | 250 V | 250 V |
2C30 Series
2C30UR 30A MCB C CHAR 2 P 480Y/2
| Part | Breaker Type | Mounting Type | Current Rating (Amps) | Illumination | Actuator Type | Number of Poles | Approval Agency | Voltage Rating - AC | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 2C30UR | Thermal Magnetic | DIN Rail | 30 A | None | Lever | 2 | CE, cURus, UL1077 | 480 V | |
Altech Corporation 2C30DL | Thermal Magnetic | DIN Rail | 30 A | None | Lever | 2 | CE, cULus, UL489 | 250 V | |
Altech Corporation 2C30UL | Thermal Magnetic | DIN Rail | 30 A | None | Lever | 2 | CE, cULus, UL489 | 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 82.96 | |
| 5 | $ 69.07 | |||
| 10 | $ 63.80 | |||
| 50 | $ 52.98 | |||
| 100 | $ 48.86 | |||
Description
General part information
2C30 Series
Circuit Breaker Thermal Magnetic 30A AC 250 V DC Lever DIN Rail
