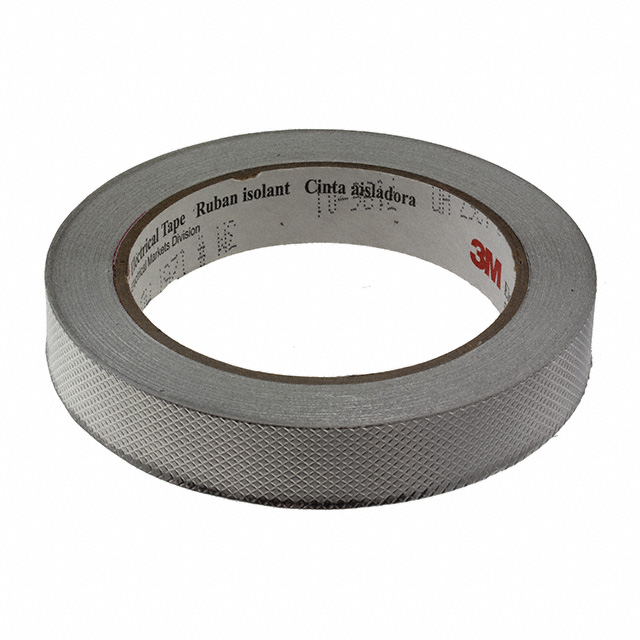

1267-3/4"X18YD
Active3M
RF EMI SHIELDING TAPE 54'X0.75"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1267-3/4"X18YD
Active3M
RF EMI SHIELDING TAPE 54'X0.75"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1267-3/4"X18YD | 1267 Series |
|---|---|---|
| Adhesive | Single Sided, Non-Conductive | Single Sided, Non-Conductive, Acrylic |
| Backing, Carrier | - | Aluminum Foil |
| Color | - | Silver |
| Length | 16.5 m | 16.5 - 91.44 m |
| Length | 54 ft | 54 ft |
| Length | - | 10 - 36 in |
| Length | - | 25.4 cm |
| Material | Embossed Aluminum Foil | Embossed Aluminum Foil |
| Shelf Life | 60 Months | 60 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Storage/Refrigeration Temperature | - | 27 °C |
| Storage/Refrigeration Temperature | - | 81 °F |
| Storage/Refrigeration Temperature | - | 10 °C |
| Storage/Refrigeration Temperature | - | 10 °C |
| Tape Type | - | EMI Shielding |
| Thickness | - | 0.0067 " |
| Thickness | - | 0.17 mm |
| Thickness | - | 6.7 mils |
| Thickness - Adhesive | - | 0.119 mm |
| Thickness - Adhesive | - | 0.0047 " |
| Thickness - Adhesive | - | 4.7 mils |
| Thickness - Backing, Carrier | - | 0.002 " |
| Thickness - Backing, Carrier | - | 0.051 mm |
| Thickness - Backing, Carrier | - | 2 mils |
| Thickness - Overall [z] | 0.13 mm | 0.13 mm |
| Thickness - Overall [z] | 0.005 in | 0.005 in |
| Type | Shielding Tape | Shielding Tape, Shielding Sheet |
| Width | 0.75 in | 0.75 in |
| Width | 19.1 mm | 19.1 - 25.4 mm |
| Width | - | 195.58 mm |
| Width | - | 1 - 7.7 in |
1267 Series
RF EMI SHIELDING TAPE 54'X0.75"
| Part | Type | Thickness - Overall [z] | Thickness - Overall [z] | Shelf Life | Adhesive | Length | Length | Shelf Life Start | Material | Width | Width | Length [x] | Length [x] | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Width [x] | Width [x] | Backing, Carrier | Color | Thickness | Thickness | Thickness | Tape Type | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Shielding Tape | 0.13 mm | 0.005 in | 60 Months | Non-Conductive, Single Sided | 16.5 m | 54 ft | Date of Manufacture | Embossed Aluminum Foil | 0.75 in | 19.1 mm | |||||||||||||||||||||
Shielding Tape | 0.13 mm | 0.005 in | Non-Conductive, Single Sided | 16.5 m | 54 ft | Embossed Aluminum Foil | |||||||||||||||||||||||||
60 Months | Acrylic | Date of Manufacture | 10 in | 25.4 cm | 0.119 mm | 0.0047 " | 4.7 mils | 0.002 " | 0.051 mm | 2 mils | 195.58 mm | 7.7 in | Aluminum Foil | Silver | 0.0067 " | 0.17 mm | 6.7 mils | EMI Shielding | 27 °C | 81 °F | 10 °C | 10 °C | |||||||||
Shielding Sheet, Shielding Tape | 0.13 mm | 0.005 in | Non-Conductive, Single Sided | 16.5 m, 91.44 cm | 54 ft | Embossed Aluminum Foil | 25.4 mm | 36 " | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.91 | |
| 12 | $ 65.80 | |||
| 36 | $ 61.69 | |||
| 60 | $ 57.57 | |||
| 108 | $ 54.69 | |||
Description
General part information
1267 Series
RF EMI Shielding Tape 1267 Embossed Aluminum Foil Non-Conductive, Single Sided 0.750" (19.10mm) X 54.000' (16.50m) X 0.005" (0.13mm)
