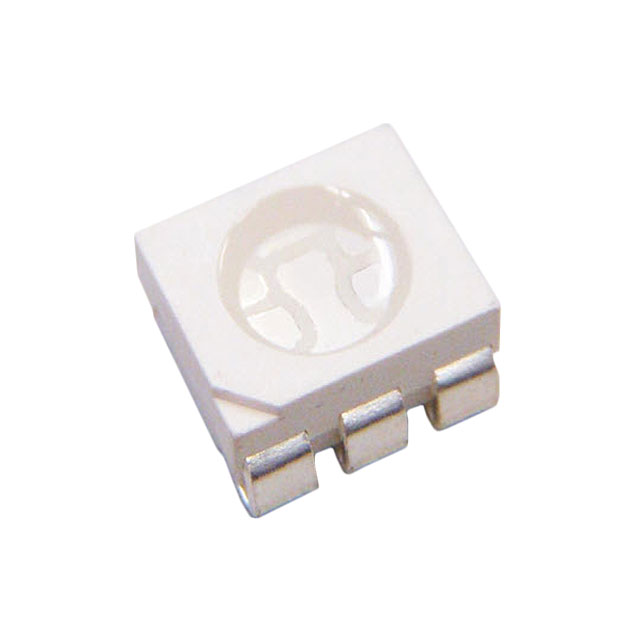

CLP6C-AKW-CZ0B0AA3

Active

Cree LED

LED AMBER CLEAR 6PLCC SMD

Search across all available documentation for this part.

Active

Cree LED

LED AMBER CLEAR 6PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

HIGH BRIGHTNESS LED, CLP6C-RKW SERIES, RED, 624 NM, 120 °, 240 MA

Part	Lens Transparency	Millicandela Rating	Supplier Device Package	Current - Test	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Package / Case	Height (Max) [Max] [z]	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Lens Color	Color	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Viewing Angle	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Cree LED CLP6C-RKW-CYBA0AA3	Clear	5325 mcd	6-PLCC	50 mA	4 mm	2.4 V	6-SMD, J-Lead	2.6 mm	624 nm	6 mm	5 mm	Surface Mount	Colorless	Red	Standard
Cree LED CLP6C-AKW-CZ0B0AA3	Clear	6750 mcd	6-PLCC	50 mA	4 mm	2.4 V	6-SMD, J-Lead	2.6 mm	591 nm	6 mm	5 mm	Surface Mount	Colorless	Amber	Standard
Cree LED CLP6C-FKB-CK1P1G1BB7R3R3	Diffused		6-PLCC		4 mm		6-SMD, J-Lead	2.6 mm	470 nm, 530 nm, 621.5 nm	6 mm	5 mm	Surface Mount	White	Blue, Green, Red	Independent	420 mcd	840 mcd	1680 mcd	20 mA	20 mA	20 mA	120 °	3.2 V	2 V	3.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amber 591nm LED Indication - Discrete 2.4V 6-SMD, J-Lead
