GLFR2012T1R0M-LR
ObsoleteTDK Corporation
FIXED IND 1UH 1.15A 58 MOHM SMD
GLFR2012T1R0M-LR
ObsoleteTDK Corporation
FIXED IND 1UH 1.15A 58 MOHM SMD
Description
General part information
GLFR2012T1R0M-LR

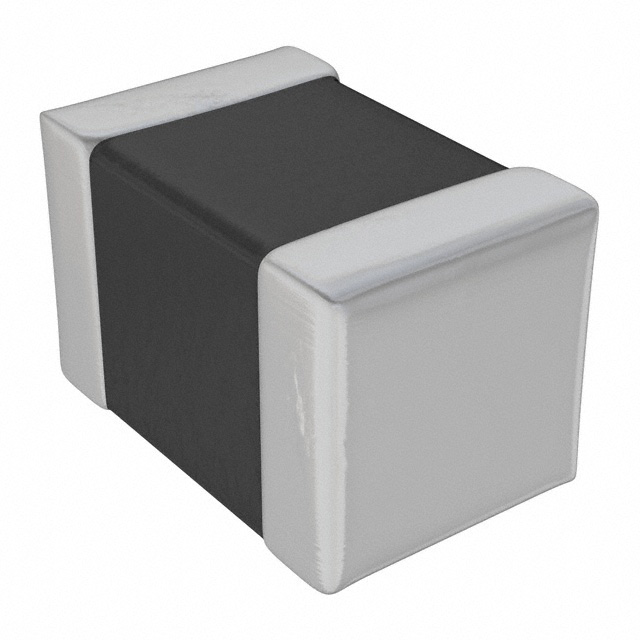

1 µH Shielded Inductor 1.15 A 58mOhm 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | GLFR2012T1R0M-LR |
|---|---|
| Current - Saturation (Isat) | 0.3 mA |
| Current Rating | 1.15 A |
| DC Resistance (DCR) | 58 mOhm |
| Height - Seated (Max) | 0.053 in |
| Inductance | 1 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Length | 2 mm |
| Package Name | 0805, 0805 (2012 Metric) |
| Package Width | 1.2 mm |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
