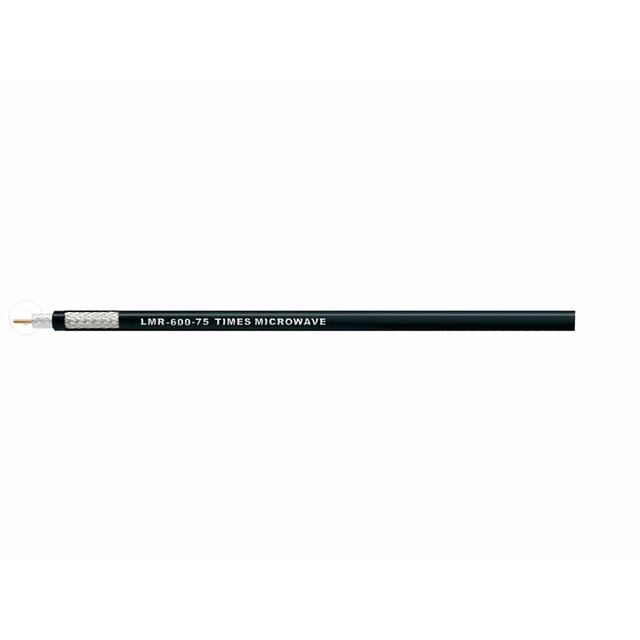

LMR-600-75
ActiveAmphenol Times Microwave Systems
STANDARD CABLE, BLK PE JKT FOOT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LMR-600-75
ActiveAmphenol Times Microwave Systems
STANDARD CABLE, BLK PE JKT FOOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LMR-600-75 | LMR-600 Series |
|---|---|---|
| Cable Type | Coaxial | Coaxial - Plenum, Coaxial, Coaxial - Riser |
| Conductor Material | Aluminum, Copper Coated | Aluminum, Copper Coated, Copper, Bare |
| Conductor Strand | Solid | Solid |
| Dielectric Diameter [diameter] | 11.56 mm | 11.56 mm |
| Dielectric Diameter [diameter] | 0.455 in | 0.455 in |
| Dielectric Material | Foam Polyethylene (FPE) | Polytetrafluoroethylene (PTFE), Foam Polyethylene (FPE) |
| Features | - | Flame Retardant, Fire Retardant, Direct Burial, Watertight |
| Impedance | 75 Ohms | 50 - 75 Ohms |
| Jacket (Insulation) Diameter [diameter] | 14.99 mm | 14.35 - 14.99 mm |
| Jacket (Insulation) Diameter [diameter] | 0.59 in | 0.565 - 0.59 in |
| Jacket (Insulation) Material | Polyethylene (PE) | Plenum, Poly-Vinyl Chloride (PVC), Polyethylene (PE), Low Smoke Zero Halogen (LSZH), Thermoplastic Elastomer (TPE), Poly-Vinyl Chloride (PVC), Riser, Polyethylene (PE), Riser, Fluoropolymer, Plenum |
| Jacket Color | Black | Orange, Black, Red |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Length | - | 15.24 - 76.2 m |
| Length | - | 50 - 3000 ft |
| Length | - | 1 - 100 ft |
| Length | - | 3.05 - 300 mm |
| Operating Temperature [Max] | 85 °C | 75 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 - -5 °C |
| Shield Material | Copper, Tinned, Aluminum | Copper, Tinned, Aluminum |
| Shield Type | Braid | Braid, Foil |
| Spool Size | 500 ' | 500 ' |
| Spool Size | 152.4 m | 152.4 m |
| VoP, Velocity of Propagation | 87 | 76 - 87 |
LMR-600 Series
CABLE LMR-600 FRPVC 50'
| Part | Jacket (Insulation) Material | Jacket Color | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Features | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Impedance | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Dielectric Material | Length | Length | Shield Material | Shield Type | Conductor Strand | Length [x] | Length [x] | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems LMR-600-LLPL | Plenum, Poly-Vinyl Chloride (PVC) | Orange | Coaxial - Plenum | 75 ░C | -5 °C | Aluminum, Copper Coated | Flame Retardant | 76 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Polytetrafluoroethylene (PTFE) | 15.24 m | 50 ft | Aluminum, Copper, Tinned | Braid | Solid | |||||
Amphenol Times Microwave Systems LMR-600-PVC-W | Poly-Vinyl Chloride (PVC) | Coaxial | 85 °C | -40 °C | Aluminum, Copper Coated | 85 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | Aluminum, Copper, Tinned | Braid | Solid | |||||||||
Amphenol Times Microwave Systems LMR-600-LSZH | Low Smoke Zero Halogen (LSZH), Polyethylene (PE) | Black | Coaxial | 85 °C | -40 °C | Copper, Bare | 85 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | Aluminum, Copper, Tinned | Braid | Solid | 1 ft | 300 mm | ||||||
Amphenol Times Microwave Systems LMR-600-75-FR | Polyethylene (PE) | Black | Coaxial | 85 °C | -40 °C | Aluminum, Copper Coated | Fire Retardant | 87 | 11.56 mm | 0.455 in | 75 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | Aluminum, Copper, Tinned | Braid | Solid | |||||||
Amphenol Times Microwave Systems LMR-600-DB | Polyethylene (PE) | Black | Coaxial | 85 °C | -40 °C | Aluminum, Copper Coated | Direct Burial, Watertight | 85 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | 15.24 m, 76.2 m | 50 ft, 3000 " | Aluminum, Copper, Tinned | Braid | Solid | 10 ft, 100 ft | 3.05 m, 30.48 m | |||
Amphenol Times Microwave Systems LMR-600 | Polyethylene (PE) | Black | Coaxial | 85 °C | -40 °C | Aluminum, Copper Coated | 85 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | 15.24 m, 76.2 m | 50 ft, 3000 " | Aluminum, Copper, Tinned | Braid | Solid | 10 ft, 100 ft | 3.05 m, 30.48 m | ||||
Amphenol Times Microwave Systems LMR-600-75-DB | Polyethylene (PE) | Black | Coaxial | 85 °C | -40 °C | Aluminum, Copper Coated | Direct Burial | 87 | 11.56 mm | 0.455 in | 75 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | Aluminum, Copper, Tinned | Braid | Solid | |||||||
Amphenol Times Microwave Systems LMR-600-UF | Thermoplastic Elastomer (TPE) | Black | Coaxial | 85 °C | -40 °C | Copper, Bare | 87 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | 15.24 m, 76.2 m | 50 ft, 3000 " | Aluminum, Copper, Tinned | Braid | 100 ft | 30.48 m | |||||
Amphenol Times Microwave Systems LMR-600-FR-PVC | Poly-Vinyl Chloride (PVC), Riser | Black | Coaxial - Riser | 85 °C | -40 °C | Aluminum, Copper Coated | Fire Retardant | 85 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | Aluminum, Copper, Tinned | Braid | Solid | |||||||
Amphenol Times Microwave Systems LMR-600-FR | Polyethylene (PE), Riser | Black | Coaxial - Riser | 85 °C | -40 °C | Aluminum, Copper Coated | Fire Retardant | 85 | 11.56 mm | 0.455 in | 50 Ohms | 14.99 mm | 0.59 in | Foam Polyethylene (FPE) | 15.24 m, 76.2 m | 50 ft, 3000 " | Aluminum, Copper, Tinned | Braid | Solid | 10 ft, 100 ft | 3.05 m, 30.48 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 6.12 | |
| 3 | $ 5.64 | |||
| 5 | $ 5.44 | |||
| 7 | $ 5.32 | |||
| 10 | $ 5.18 | |||
| 25 | $ 4.87 | |||
| 50 | $ 4.62 | |||
| 100 | $ 4.42 | |||
Description
General part information
LMR-600 Series
Coaxial Cable Enter Number of Feet in Order Quantity 75 Ohms
