PE3C8748/WH-36

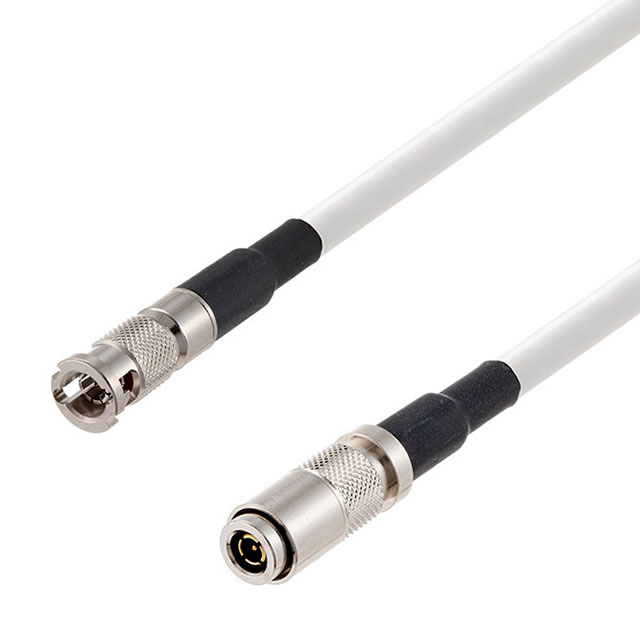

Cable Assembly Coaxial 1.0/2.3 to HD-BNC Belden 4855R 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C8748/WH-36 |
|---|---|
| 1st Connector | 1.0/2.3 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 1 mm |
| 1st Connector Dimension (2) | 2.3 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 1 mm, 1 |
| 1st Connector Size (Dimension 2) | 2.3 mm, 2.3 |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 4855R |
| Color | White |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 12 Gbps |
| Length | 36 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | 1.0/2.3 to HD-BNC |
