SC9217
ActiveFairview Microwave

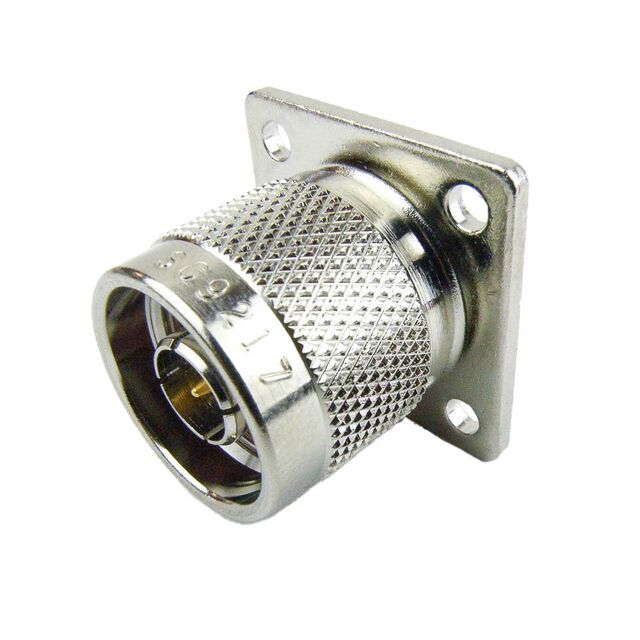

CONN PLUG SOLDER TYPE N
SC9217
ActiveFairview Microwave
CONN PLUG SOLDER TYPE N
Description
General part information
SC9217
N Type Connector Plug, Male Pin 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SC9217 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
