630-24W7640-4T1
ActiveEDAC Inc.

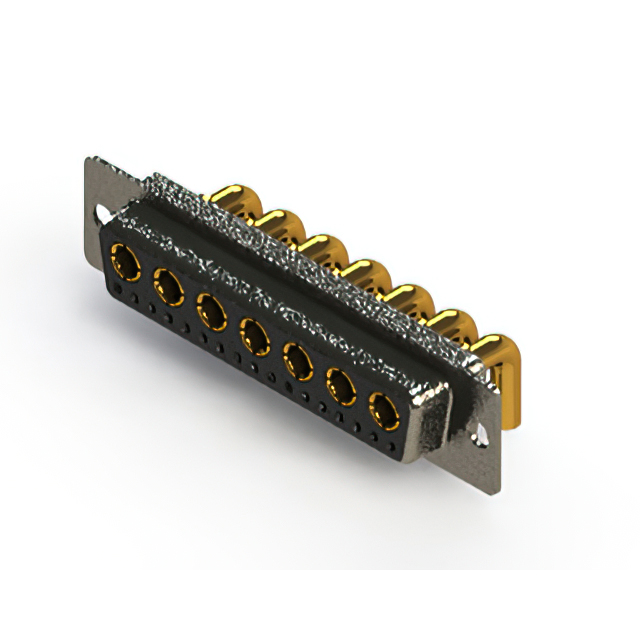

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DD-24W7, RECEPTACLE, 24 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
630-24W7640-4T1
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DD-24W7, RECEPTACLE, 24 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-24W7640-4T1 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 5 (DD, D) - 24W7 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
630-24W Series
...
| Part | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Finish | Contact Material | Contact Type | Termination | Color | Dielectric Material | Backset Spacing | Backset Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Material Flammability Rating | Shell Size, Connector Layout | Mounting Type | Number of Rows | Current Rating (Amps) | Number of Positions | Features | Contact Finish Thickness | Shell Material, Finish | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Combo D-Sub | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | Gold | Copper Alloy | Coax Signal | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | 17 | 7 | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | ||||||
EDAC Inc. | Combo D-Sub | Housing/Shell (Unthreaded) | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 5 A 40 A | 24 | Shielded | Flash | ||||||
EDAC Inc. | Combo D-Sub | 4-40 | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 5 A 20 A | 24 | Board Lock Mounting Brackets | Flash | ||||||
EDAC Inc. | Combo D-Sub | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 5 A 20 A | 24 | Mounting Brackets | |||||
EDAC Inc. | Combo D-Sub | Housing/Shell (M3) | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 24 | Board Lock Mounting Brackets | Flash | Nickel Plated Steel | 10A 5A | |||||
EDAC Inc. | Combo D-Sub | M3 | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 5 A 20 A | 24 | Mounting Brackets | Flash | ||||||
EDAC Inc. | Combo D-Sub | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 5 A 40 A | 24 | Board Lock Mounting Brackets | |||||
EDAC Inc. | Combo D-Sub | 0.76 Ám | 30 Áin | Housing/Shell (Unthreaded) | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 5 A 40 A | 24 | Shielded | |||||
EDAC Inc. | Combo D-Sub | Housing/Shell (Unthreaded) | Gold | Copper Alloy | Coax Signal | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | 17 | 7 | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | Shielded | Flash | ||||||
EDAC Inc. | Combo D-Sub | Housing/Shell (4-40) | Gold | Copper Alloy | Signal and Power | Solder | Black | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 125 VDC | Receptacle Female Sockets | UL94 V-0 | 5 (DD D) - 24W7 | Through Hole Right Angle | 2 | 24 | Flash | Nickel Plated Steel | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
630-24W Series
24 (17 + 7 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
