1-86177-4

Active

TE Connectivity AMP Connectors

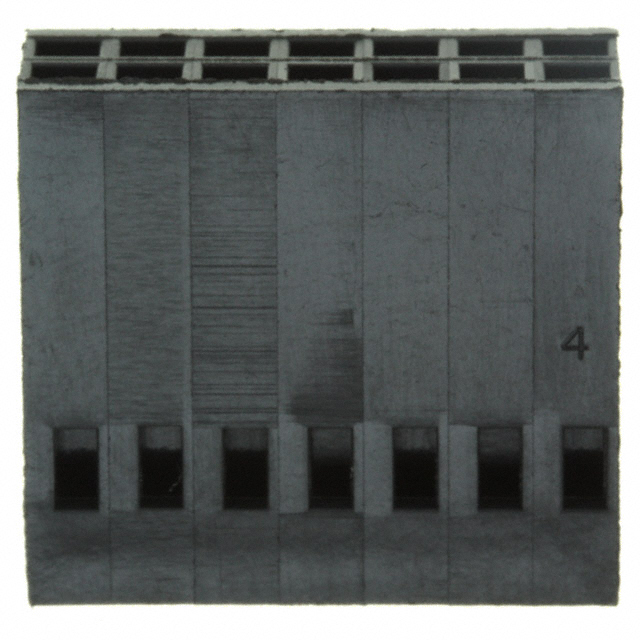

CONN RCPT HSG 14POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 14POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-86177-4	86177 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Thermoplastic	Thermoplastic, Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	14	12 - 50
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

CONN RCPT HSG 20POS 2.54MM

Part	Number of Positions	Pitch [x]	Pitch [x]	Insulation Material	Row Spacing [x]	Row Spacing	Color	Contact Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Contact Termination	Mounting Type
TE Connectivity AMP Connectors 86177-1	20	2.54 mm	0.1 in	Thermoplastic	0.1 in	2.54 mm	Black	Female Socket	Contacts Not Included	-65 ░C	105 ░C	2	Receptacle	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-86177-3	12	2.54 mm	0.1 in	Thermoplastic	0.1 in	2.54 mm	Black	Female Socket	Contacts Not Included	-65 ░C	105 ░C	2	Receptacle	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-86177-4	14	2.54 mm	0.1 in	Thermoplastic	0.1 in	2.54 mm	Black	Female Socket	Contacts Not Included	-65 ░C	105 ░C	2	Receptacle	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 86177-4	26	2.54 mm	0.1 in	Thermoplastic	0.1 in	2.54 mm	Black	Female Socket	Contacts Not Included	-65 ░C	105 ░C	2	Receptacle	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 86177-7		2.54 mm	0.1 in	Thermoplastic	0.1 in	2.54 mm	Black	Female Socket	Contacts Not Included	-65 ░C	105 ░C	2	Receptacle	Crimp	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-86177-1	50	2.54 mm	0.1 in	Glass Filled, Nylon, Polyamide (PA)	0.1 in	2.54 mm	Black	Female Socket	Contacts Not Included	-65 ░C	105 ░C	2	Receptacle	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 9.17

General part information

14 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources
