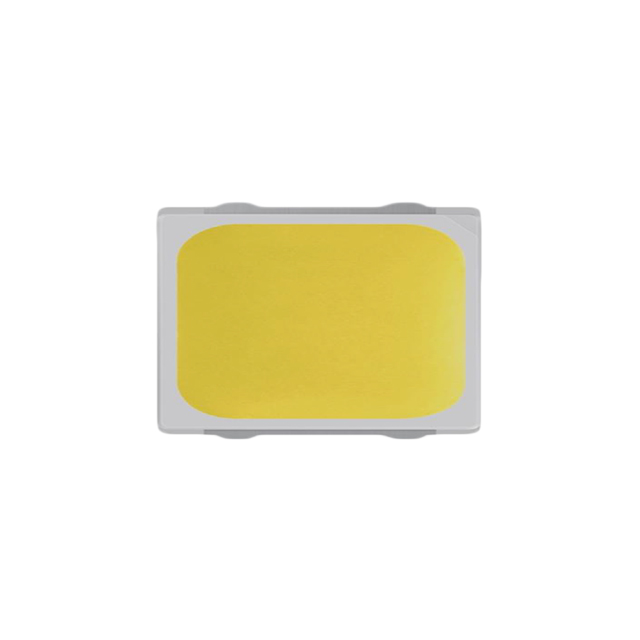

SPMWH1228FD7WATKS3

Samsung Semiconductor, Inc.

LED LM281B NEUT WHT 4000K 2835

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPMWH1228FD7WATKS3

Samsung Semiconductor, Inc.

LED LM281B NEUT WHT 4000K 2835

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWH1228FD7WATKS3	SPMWH1228 Series

CCT (K)	4000 K	2700 - 10000 K
Color	Neutral, White	Cool, White, Neutral, Warm
CRI (Color Rendering Index)	90	75 - 90
Current - Max [Max]	160 mA	160 - 200 mA
Current - Test	150 mA	65 - 150 mA
Flux @ 25°C, Current - Test	58 lm	36 - 75 lm
Flux @ 25°C, Current - Test	-	67 lm
Flux @ 25°C, Current - Test	-	51 - 67 lm
Flux @ 25°C, Current - Test	-	54 - 60 lm
Flux @ 25°C, Current - Test	-	54 - 71 lm
Flux @ 25°C, Current - Test [Max]	59 lm	37 - 69 lm
Flux @ 25°C, Current - Test [Min]	56 lm	35 - 65 lm
Height - Seated (Max) [Max] [z]	0.03 in	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm	0.75 mm
Lumens/Watt @ Current - Test	125 lm/W	100 - 198 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1113 (2835 Metric)	1113 (2835 Metric)
Size / Dimension [x]	0.138 "	0.138 "
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	2835	2835
Thermal Resistance of Package	-	20 - 25 °C/W
Thermal Resistance of Package [diameter]	17 °C/W	15 - 17 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.1 V	2.8 - 3.1 V

SPMWH1228 Series

LED LM281B COOL WHITE 5000K 2835

...

Part	Package / Case	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	CRI (Color Rendering Index)	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Viewing Angle	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Lumens/Watt @ Current - Test	Supplier Device Package	CCT (K)	Thermal Resistance of Package [custom]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test
Samsung Semiconductor, Inc. SPMWH1228FD5WAR0S3	1113 (2835 Metric)	67 lm	63 lm	65 lm	80	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Cool, White	140 lm/W	2835	5000 K	25 °C/W	3.1 V	160 mA
Samsung Semiconductor, Inc. SPMWH1228FD5WAR0SC	1113 (2835 Metric)	67 lm	63 lm	65 lm	80	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Cool, White	140 lm/W	2835	5000 K	25 °C/W	3.1 V	160 mA
Samsung Semiconductor, Inc. SPMWH1228FD5WAT0SA	1113 (2835 Metric)				80	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Neutral, White	129 lm/W	2835	4000 K	25 °C/W	3.1 V	160 mA	62 lm	58 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAQUVJ	1113 (2835 Metric)				90	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Cool, White	149 lm/W	2835	5700 K	20 °C/W	3 V	200 mA	69 lm	65 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WATMS4	1113 (2835 Metric)				80	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Neutral, White	144 lm/W	2835	4000 K	25 °C/W	3.1 V	160 mA	69 lm	65 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAVKS4	1113 (2835 Metric)			59 lm	90	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Warm, White	127 lm/W	2835			3.1 V	160 mA			17 °C/W	57 lm, 60 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAPUS4	1113 (2835 Metric)				80	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Cool, White	144 lm/W	2835	6500 K	25 °C/W	3.1 V	160 mA	69 lm	65 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAW0SG	1113 (2835 Metric)				80	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Warm, White	149 lm/W	2835	2700 K	25 °C/W	3 V	160 mA	69 lm	65 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAQMSC	1113 (2835 Metric)			56 lm	90	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Cool, White	120 lm/W	2835	5700 K	25 °C/W	3.1 V	160 mA				54 lm, 57 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAWMSE	1113 (2835 Metric)			63 lm	80	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	120 °	150 mA	0.03 in	0.75 mm	Warm, White	135 lm/W	2835	2700 K	25 °C/W	3.1 V	160 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	40000	$ 0.02
		80000	$ 0.01
		120000	$ 0.01

Description

General part information

SPMWH1228 Series

LED Lighting LM281B White, Neutral 4000K 3.1V 150mA 120° 1113 (2835 Metric)
