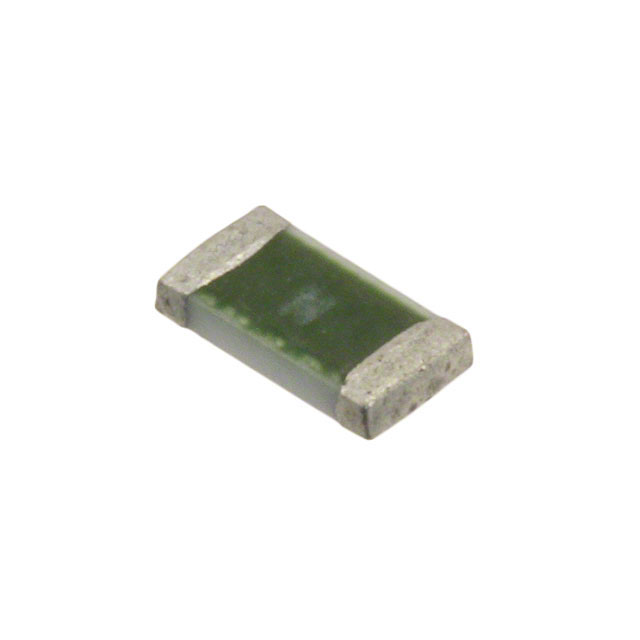

CC12H4.5A-TR
ActiveEaton - Electronics Division
FUSE BOARD MOUNT 4.5A 32VDC 1206
CC12H4.5A-TR
ActiveEaton - Electronics Division
FUSE BOARD MOUNT 4.5A 32VDC 1206
Description
General part information
CC12H4.5A-TR
4.5 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CC12H4.5A-TR |
|---|---|
| Approval Agency | cURus |
| Breaking Capacity | 100 A |
| Current Rating | 4.5 A |
| DC Cold Resistance | 25 mOhms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 4.2 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Slow Blow |
| Size / Dimension Height | 0.024 in |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Voltage Rating - DC | 32 V |
