DP2.5
ActiveDinkle Corporation, USA
PUSH IN TERM BLK FEED THROUGH 26
DP2.5
ActiveDinkle Corporation, USA
PUSH IN TERM BLK FEED THROUGH 26
Description
General part information

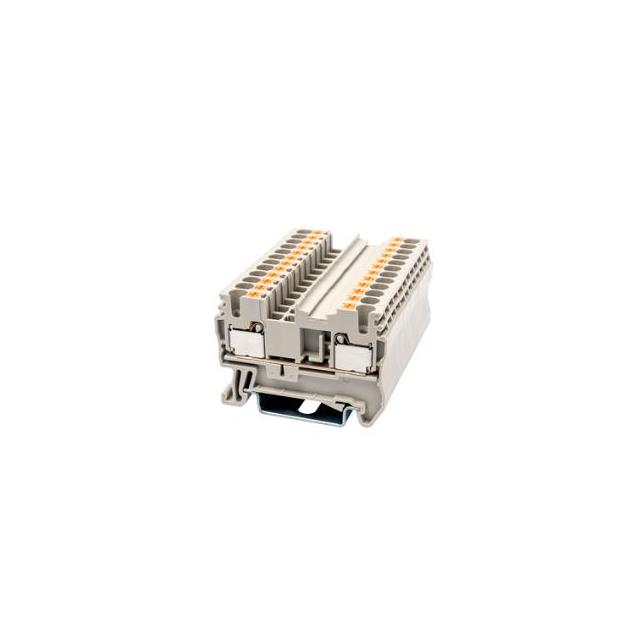

DP2.5
Terminal Block Connector 2 Position Feed Through Gray 12-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | DP2.5 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 10 mm |
| Terminal Width | 5.1 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
