FP-301-1-YELLOW-50'

Active

HEATSHRINK FP301 1-50' YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

FP-301-1-YELLOW-50'

Active

HEATSHRINK FP301 1-50' YELLOW

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FP-301-1-YELLOW-50'	FP-301 Series

Color	Yellow	Clear, Yellow, Green, Black, White, Blue, Red
Diameter	-	0.046875 - 3 in
Diameter	-	6 pcs 3/4", 20 pcs 3/8", 30 pcs 3/16", 28 pcs 1/4", 4 pcs 1", 14 pcs 1/2"
Diameter	-	1/2, 21 pcs 3/16, 21 pcs 1/4, 14 pcs 3/8, 28 pcs 1/8, 14 pcs 1/2, 35 pcs 3/32
Diameter	-	0.125 in
Diameter	-	0.1875 "
Diameter	-	0.046875 "
Features	Flame Retardant, Solvent Resistant	Solvent Resistant, Split Resistant, Flame Retardant, Header Label
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.58 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered [diameter]	0.5 in	0.031 - 2 in
Inner Diameter - Recovered [diameter]	12.7 mm	0.023 - 50.8 mm
Inner Diameter - Supplied	-	2.36 mm
Inner Diameter - Supplied [diameter]	1 in	0.046 - 4 in
Inner Diameter - Supplied [diameter]	25.4 mm	0.093 - 101.6 mm
Length	15.2 m	1.52 - 304.8 m
Length	50 ft	0.062 - 3000 ft
Length	-	1.22 - 152.4 m
Length	-	0.333 - 500 ft
Length	-	4 "
Length	-	0.75 - 6 "
Length	-	Enter Number of Feet in Order Quantity
Length	-	0.5 '
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.89 mm	0.41 - 1.4 mm
Recovered Wall Thickness	0.035 in	0.016 - 0.055 in
Recovered Wall Thickness	-	0.025 "
Recovered Wall Thickness	-	0.64 mm
Recovered Wall Thickness	-	0.03 "
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	100 °C	100 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	-	61 - 304.8 m
Spool Size	-	200 - 1000 '
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible
Values	-	6 - 152.4 pcs
Values	-	6 - 152.4 mm
Values	-	6 "
Values	-	4 pc Pkgs, 3 pc Pkgs
Values	-	152.4 mm
Values	-	152.4 mm
Values	-	10 pc
Values	-	14 - 40 pc
Values	-	6 in
Values	-	6 - 152.4 mm
Values	-	6 in
Values	-	20 - 28
Values	-	10
Values	-	152.4 mm

FP-301 Series

HEATSHRINK 1/4"X4' CLR 1=1PC 48"

...

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Material	Shrink Temperature	Length [x]	Length [x]	Color	Features	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Recovered Wall Thickness	Length [x]	Length	Length	Inner Diameter - Recovered [diameter]	Length
3M FP301-1/4-48"-CLEAR-200 PCS	Tubing, Flexible	135 °C	-55 °C	0.125 in	3.18 mm	Polyolefin (PO)	100 °C	1.22 m	4 ft	Clear	Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1	0.25 in	6.35 mm	0.025 "	0.64 mm
3M FP301-3/32-48"-YELLOW-250 PCS	Tubing, Flexible	135 °C	-55 °C	0.046 in		Polyolefin (PO)	100 °C	1.22 m	4 ft	Yellow	Flame Retardant, Solvent Resistant, Split Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1		0.093 in			0.02 in	0.51 mm	2.36 mm	1.17 mm
3M FP-301-1/16-GREEN-4'-BULK	Tubing, Flexible	135 °C	-55 °C	0.031 in		Polyolefin (PO)	100 °C	1.22 m	4 ft	Green	Flame Retardant, Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1	0.063 in	1.6 mm			0.017 in	0.43 mm		0.79 mm
3M FP301-1/8-48"-YELLOW-HDR-25 PCS	Tubing, Flexible	135 °C	-55 °C	0.062 in		Polyolefin (PO)	100 °C	1.22 m	4 ft	Yellow	Flame Retardant, Header Label, Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1	0.125 "	3.18 mm			0.02 in	0.51 mm		1.57 mm
3M FP-301-3/4-GREEN-50'	Tubing, Flexible	135 °C	-55 °C	0.375 in		Polyolefin (PO)	100 °C			Green	Flame Retardant, Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1						0.76 mm		9.53 mm	15.2 m	50 ft	0.03 "
3M FP-301 3/32" CR 500'	Tubing, Flexible	135 °C	-55 °C	0.046 in		Polyolefin (PO)	100 °C	30.5 m, 101.6 mm	0.333 ft, 100 ft	Clear	Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1		0.093 in			0.02 in	0.51 mm	2.36 mm	1.17 mm	1.52 m, 7.6 m, 15.2 m, 50.8 mm, 76.2 m, 76.2 mm	0.167 ', 0.25 ft, 5 ', 25 ft, 50 ft, 3000 "		4 "	2 ", 3 "
3M FP301-1/16-100'-BLACK-SPOOL	Tubing, Flexible	135 °C	-55 °C	0.031 in		Polyolefin (PO)	100 °C			Black	Flame Retardant, Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1	0.063 in	1.6 mm			0.017 in	0.43 mm		0.79 mm						Enter Number of Feet in Order Quantity
3M FP-301-3-CLEAR-50'	Tubing, Flexible	135 °C	-55 °C	1.5 in		Polyolefin (PO)	100 °C			Clear	Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1	3 in	76.2 mm			0.05 in	1.27 mm		38.1 mm	15.2 m	50 ft
3M FP-301-VW-3/64-BLACK	Tubing, Flexible	135 °C	-55 °C			Polyolefin (PO)	100 °C			Black	Flame Retardant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1	0.046 in	1.17 mm			0.016 "	0.41 mm		0.023 in	152.4 mm				6 "		0.58 mm	0.5 '
3M FP-301-1-YELLOW-50'	Tubing, Flexible	135 °C	-55 °C	0.5 in		Polyolefin (PO)	100 °C			Yellow	Flame Retardant, Solvent Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	120 Months	2 to 1	1 in	25.4 mm			0.035 in	0.89 mm		12.7 mm	15.2 m	50 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FP-301 Series

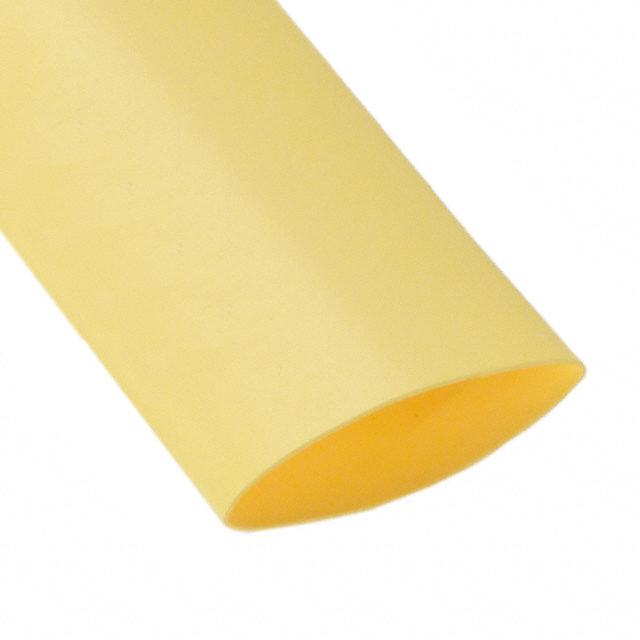

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 2 to 1 Yellow 50.0' (15.2m)

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet
