6803432124F

Active

DIALIGHT

10MM HB/B PMI-6VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HB/B PMI-6VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6803432124F	6803432 Series

Current	30 mA	30 mA
Lamp Color	Blue	Blue
Lens Size	-	12 mm
Millicandela Rating	245 mcd	245 - 5400 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.4 mm
Panel Cutout Dimensions	-	10.3 mm
Panel Cutout Dimensions	-	0.41 in
Panel Cutout Dimensions [diameter]	0.41 in	0.41 in
Panel Cutout Dimensions [diameter]	10.41 mm	10.41 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	6 V	6 - 24 V

10MM HB/B PMI-6VDC

Part	Type	Panel Cutout Shape	Termination Style	Voltage	Current	Ratings	Millicandela Rating	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Viewing Angle	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions
DIALIGHT 6803432224F	LED	Round	Solder Lug	6 V	30 mA	DC	730 mcd	0.37 in	9.4 mm	Blue
DIALIGHT 6803432124F	LED	Round	Solder Lug	6 V	30 mA	DC	245 mcd			Blue	0.41 in	10.41 mm
DIALIGHT 6803432234F	LED		Solder Lug	12 V	30 mA	DC	5400 mcd			Blue			30 °
DIALIGHT 6803432134F	LED	Round	Solder Lug	12 V	30 mA	DC	5400 mcd			Blue			30 °	12 mm	10.3 mm	0.41 in
DIALIGHT 6803432244F	LED			24 V	30 mA	DC	5400 mcd			Blue			30 °
DIALIGHT 6803432144F	LED	Round	Solder Lug	24 V	30 mA	DC	5400 mcd			Blue			30 °	12 mm	10.3 mm	0.41 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

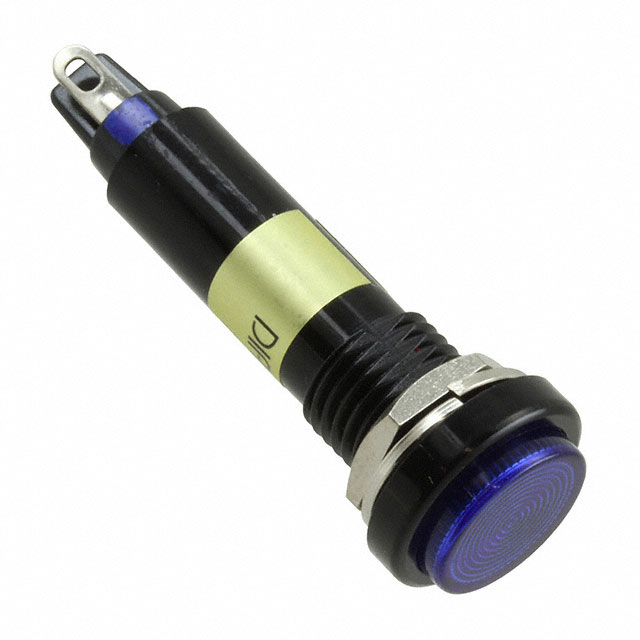

LED Panel Indicator Blue 6V 30mA Solder Lug
