9L26016 008H100
ActiveBelden Inc.
CBL RIBN 16COND 0.05 GRAY 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9L26016 008H100 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG, 7 Strands |
| Current Rating (Amps) | 1.5 A |
| First Conductor Mark | Blue |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 16 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.99 mm |
| Ribbon Thickness | 0.039 in |
| Ribbon Width [y] | 20.32 mm |
| Ribbon Width [y] | 0.8 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 421.52 | |
| 5 | $ 335.19 | |||
| 10 | $ 304.71 | |||
| 25 | $ 267.47 | |||
Description
General part information
9L26016 Series

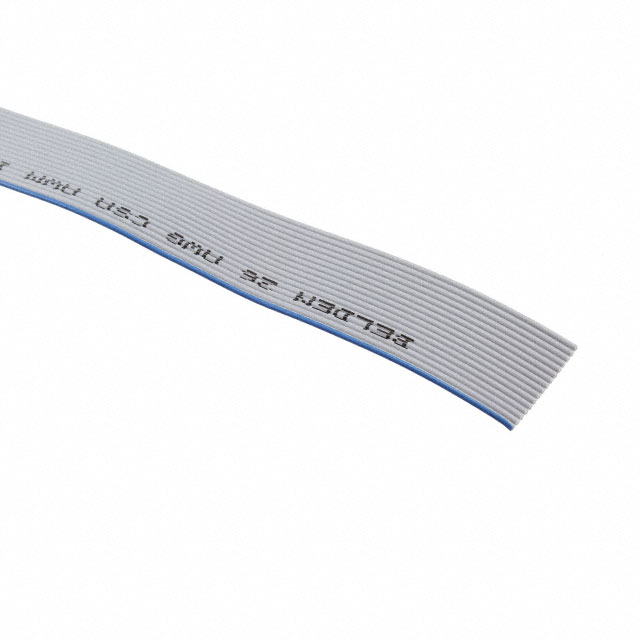

Flat Ribbon Cable Gray 16 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
