W49-112
ActiveLumex Opto/Components Inc.
PBS 12MM SPST 0.1A 48V MOM PLAST
W49-112
ActiveLumex Opto/Components Inc.
PBS 12MM SPST 0.1A 48V MOM PLAST
Description
General part information
W49-112

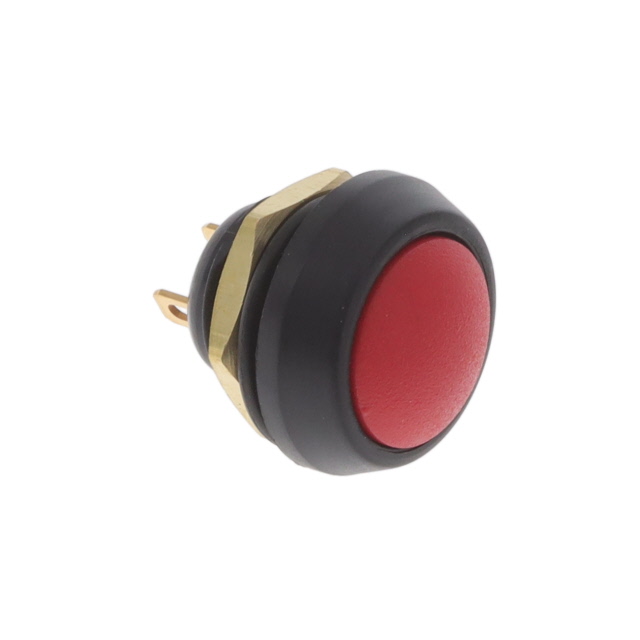

Pushbutton Switch SPST-NO Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | W49-112 |
|---|---|
| Actuator Type | Button, Round, Domed |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating | 100 mA, 125 mA |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 13.4 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 50 V |
