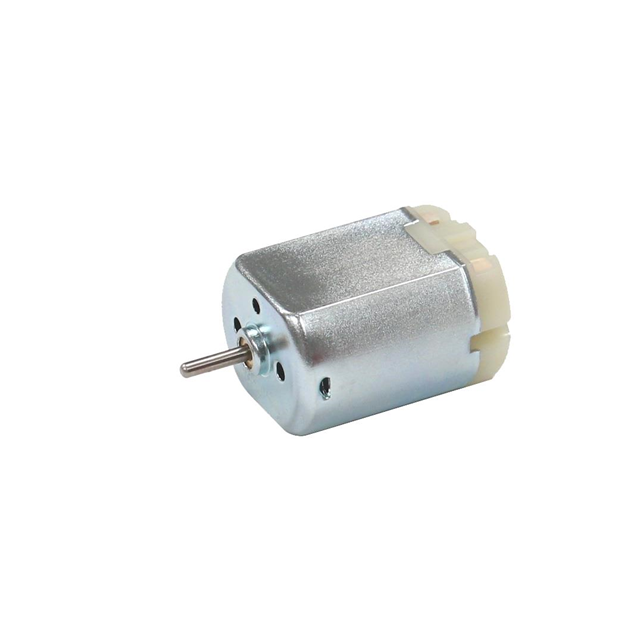

NF143G-301

Obsolete

Johnson Motor

LOW VOLTAGE DC MOTORS

Search across all available documentation for this part.

Obsolete

Johnson Motor

LOW VOLTAGE DC MOTORS

Technical Specifications

Parameters and characteristics for this part

Specification	NF143G-301

Diameter - Shaft [diameter]	2 mm
Diameter - Shaft [diameter]	0.079 in
Function	Standard
Length - Shaft and Bearing [x]	12.5 mm
Length - Shaft and Bearing [x]	0.492 in
Motor Type	Brushed
Mounting Hole Spacing	0.488 in
Mounting Hole Spacing	12.4 mm
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
RPM	19600 RPM
Size / Dimension	Round
Size / Dimension [diameter]	20.32 mm
Size / Dimension [diameter]	0.8 in
Termination Style	Solder Tab
Torque - Rated (oz-in / mNm)	0.48 oz-in
Torque - Rated (oz-in / mNm)	3.42 mNm
Type	DC Motor
Voltage - Rated	12 VDC

LOW VOLTAGE DC MOTORS

Part	Motor Type	RPM	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Function	Mounting Hole Spacing	Mounting Hole Spacing	Termination Style	Type	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]
Johnson Motor NF143G-301	Brushed	19600 RPM	0.48 oz-in	3.42 mNm	2 mm	0.079 in	55 °C	-10 °C	12.5 mm	0.492 in	12 VDC	Standard	0.488 in	12.4 mm	Solder Tab	DC Motor	20.32 mm	Round	0.8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Brushed DC Motor Standard 19600 RPM 7.4W 12VDC

Technical documentation and resources

No documents available
