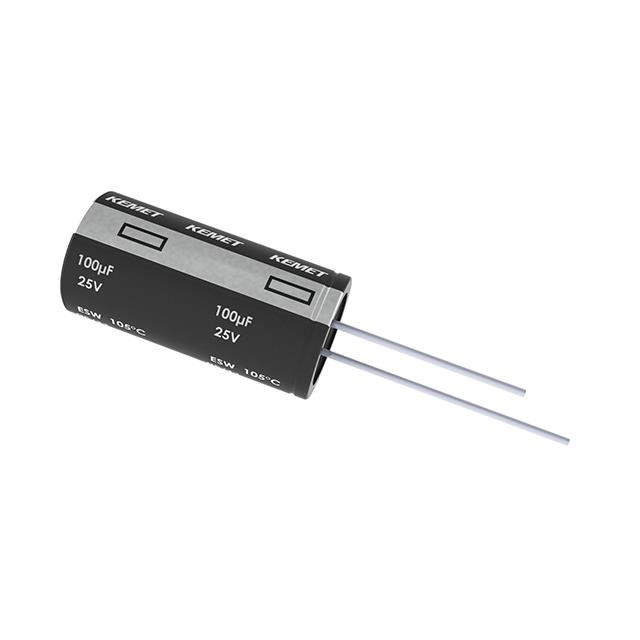

ESW188M035AM7AA
1.8 mF 35 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | ESW188M035AM7AA |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.8 mF |
| Height - Seated (Max) | 1.063 in |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295 in |
| Lifetime | 6000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 2.93 A, 1.758 A |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
