129409-031

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

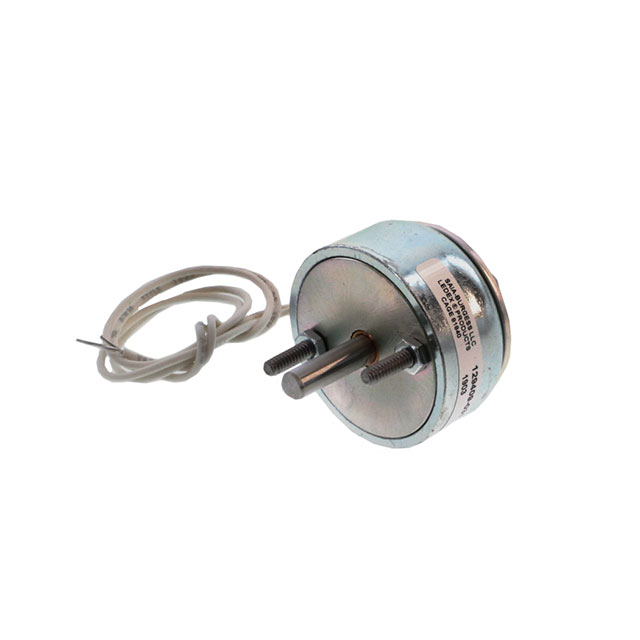

LOW PROFILE SOLENOID - 4EC 24 VD

Search across all available documentation for this part.

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

LOW PROFILE SOLENOID - 4EC 24 VD

Technical Specifications

Parameters and characteristics for this part

LOW PROFILE SOLENOID - 4EC 24 VD

Part	Shaft Detail	Termination Style	Technology	Type	Stroke Length	Stroke Length	Duty Cycle	Power (Watts)	DC Resistance (DCR)	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]
Ledex Dormeyer Saia, a Division of Johnson Electric 129409-031	Round	Wire Leads	Electromechanical	Closed Frame (Pull), Tubular	6.35 mm	0.25 in	Continuous	12.5 W	56.7 Ohm	27 VDC	5.54 mm	0.218 in	Chassis Mount	0.835 in	39.68 mm	1.562 "	21.21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 56.56

General part information

Continuous Duty Solenoid Closed Frame (Pull), Tubular Type 0.250" (6.35mm) Stroke 27VDC Chassis Mount

Technical documentation and resources

No documents available
