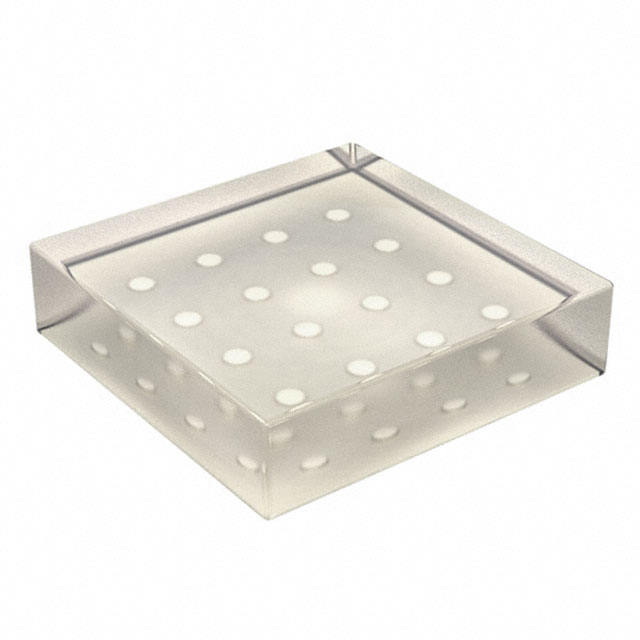

L1F2-U380100003001

Unknown

Lumileds

LED UV/NUV 380NM 300MW FLIPCHIP

Search across all available documentation for this part.

Unknown

Lumileds

LED UV/NUV 380NM 300MW FLIPCHIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L1F2-U380100003001	L1F2 Series

Current - DC Forward (If) (Max)	1 A	1 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If	500 mA	500 mA
Radiant Intensity (Ie) Min @ If [Min]	350 mW/sr	250 - 450 mW/sr
Type	Ultraviolet (UV)	Ultraviolet (UV)
Voltage - Forward (Vf) (Typ)	3.2 V	3.1 - 3.2 V
Wavelength [Max]	390 nm	390 - 400 nm
Wavelength [Min]	380 nm	380 - 390 nm

LED UV/NUV 380NM 400MW FLIPCHIP

Part	Type	Wavelength [Min]	Wavelength [Max]	Current - DC Forward (If) (Max)	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Radiant Intensity (Ie) Min @ If
Lumileds L1F2-U380100004001	Ultraviolet (UV)	380 nm	390 nm	1 A	Top View	135 °C	-40 °C	450 mW/sr	3.2 V	Surface Mount	2-SMD, No Lead
Lumileds L1F2-U380100002001	Ultraviolet (UV)	380 nm	390 nm	1 A	Top View	135 °C	-40 °C	250 mW/sr	3.2 V	Surface Mount	2-SMD, No Lead
Lumileds L1F2-U380100003001	Ultraviolet (UV)	380 nm	390 nm	1 A	Top View	135 °C	-40 °C	350 mW/sr	3.2 V	Surface Mount	2-SMD, No Lead	500 mA
Lumileds L1F2-U390100004001	Ultraviolet (UV)	390 nm	400 nm	1 A	Top View	135 °C	-40 °C	450 mW/sr	3.1 V	Surface Mount	2-SMD, No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ultraviolet (UV) Emitter 380nm ~ 390nm 3.2V 1A 350mW/sr @ 500mA 2-SMD, No Lead

Technical documentation and resources
