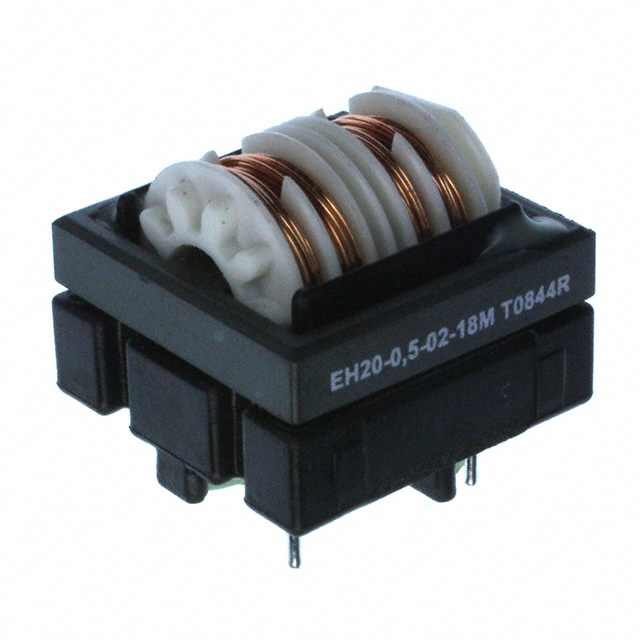

EH20-0.5-02-18M

Active

Schaffner EMC Inc.

CMC 18MH 500MA 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 18MH 500MA 2LN TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EH20-0.5-02-18M	EH20-0 Series

Current Rating (Max) [Max]	500 mA	500 - 800 mA
DC Resistance (DCR) (Max)	725 mOhm	245 - 725 mOhm
Filter Type	Power Line	Power Line
Height (Max)	18.8 mm	18.8 mm
Height (Max) [Max]	0.74 in	0.74 in
Inductance @ Frequency	400 Hz, 18 mH	5.6 - 400 mH
Mounting Type	Through Hole	Through Hole
Number of Lines	2	2
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Package / Case	Horizontal	Horizontal
Package / Case	4 Lead	4 Lead
Size / Dimension [x]	21 mm	21 mm
Size / Dimension [x]	0.827 in	0.827 in
Size / Dimension [y]	0.827 in	0.827 in
Size / Dimension [y]	21 mm	21 mm
Voltage Rating - AC	250 V	250 V

CMC 5.6MH 800MA 2LN TH

Part	Height (Max)	Height (Max) [Max]	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Operating Temperature [custom]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Mounting Type	Number of Lines	Package / Case	Package / Case	Filter Type
Schaffner EMC Inc. EH20-0.8-02-5M6	18.8 mm	0.74 in	250 V	0.827 in	21 mm	21 mm	0.827 in	5.6 mH	-25 °C, 100 °C	800 mA	245 mOhm	Through Hole	2	Horizontal	4 Lead	Power Line
Schaffner EMC Inc. EH20-0.5-02-18M	18.8 mm	0.74 in	250 V	0.827 in	21 mm	21 mm	0.827 in	18 mH, 400 Hz	-25 °C, 100 °C	500 mA	725 mOhm	Through Hole	2	Horizontal	4 Lead	Power Line

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 1.30

General part information

18 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 500mA DCR 725mOhm (Typ)

Technical documentation and resources
