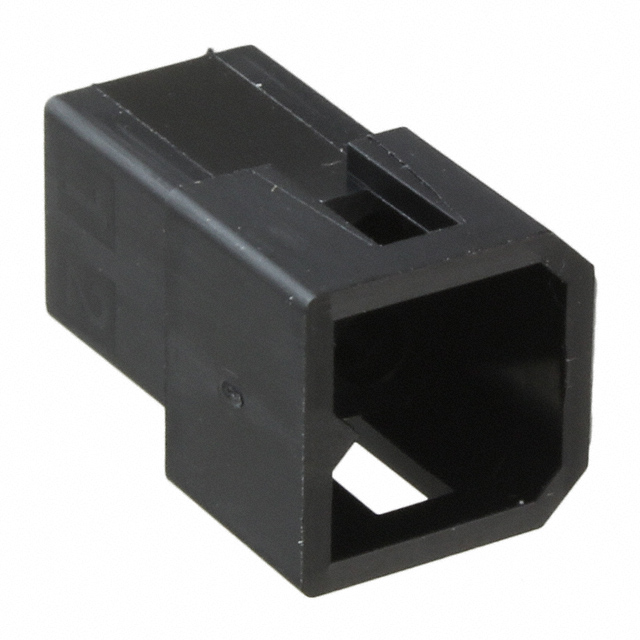

4 Rectangular Connectors - Housings Plug Black 0.145" (3.68mm)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 0003067044 | 000306 Series |
|---|---|---|
| - | - | |
| Color | Black | Natural, Black |
| Connector Type | Plug | Plug, Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Fastening Type | Latch Holder | Detent Lock, Locking Ramp, Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 1 - 36 |
| Number of Rows | 2 | 1 - 3 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 3.68 mm | 3.68 - 4.2 mm |
| Pitch [x] | 0.145 in | 0.145 - 0.165 in |
| Row Spacing | 3.68 mm | 3.68 - 4.2 mm |
| Row Spacing | 0.145 in | 0.145 - 0.165 in |
CONN PLUG HSG 15POS 3.68MM
| Part | Pitch [x] | Pitch [x] | Number of Rows | Connector Type | Note | Fastening Type | Contact Termination | Row Spacing | Row Spacing | Number of Positions | Color | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex 0003062151 | 3.68 mm | 0.145 in | 3 | Plug | Contacts Not Included | Detent Lock | Crimp | 3.68 mm | 0.145 in | 15 | Natural | Male or Female | Panel Mount, Snap-In | |||
Molex 0003061061 | 3.68 mm | 0.145 in | 3 | Receptacle | Contacts Not Included | Locking Ramp | Crimp | 3.68 mm | 0.145 in | 6 | Natural | Male or Female | Panel Mount, Snap-In | |||
Molex 0003061056 | 3.68 mm | 0.145 in | 1 | Receptacle | Contacts Not Included | Locking Ramp | Crimp | Natural | Male or Female | Free Hanging (In-Line) | ||||||
Molex 0003061024 | ||||||||||||||||
Molex 0003061361 | 3.68 mm | 0.145 in | Receptacle | Contacts Not Included | Locking Ramp | Crimp | 3.68 mm | 0.145 in | 36 | Natural | Male or Female | Panel Mount, Snap-In | ||||
Molex 0003062033 | 3.68 mm | 0.145 in | 1 | Plug | Contacts Not Included | Detent Lock | Crimp | Natural | Male or Female | Panel Mount, Snap-In | -40 °C | 105 ░C | Polyamide (PA66), Nylon 6/6 | |||
Molex 0003061041 | 3.68 mm | 0.145 in | 1 | Receptacle | Contacts Not Included | Locking Ramp | Crimp | 4 | Natural | Male or Female | Panel Mount, Snap-In | |||||
Molex 0003062121 | 3.68 mm | 0.145 in | 3 | Plug | Contacts Not Included | Detent Lock | Crimp | 3.68 mm | 0.145 in | 12 | Natural | Male or Female | Panel Mount, Snap-In | -40 °C | 105 ░C | Polyamide (PA66), Nylon 6/6 |
Molex 0003061043 | 3.68 mm | 0.145 in | 2 | Receptacle | Contacts Not Included | Locking Ramp | Crimp | 3.68 mm | 0.145 in | 4 | Natural | Male or Female | Panel Mount, Snap-In | |||
Molex 0003062362 | 4.2 mm | 0.165 in | Plug | Contacts Not Included | Crimp | 4.2 mm | 0.165 in | 36 | Natural | Male or Female | Panel Mount, Snap-In |
