628-M15-221-WT6

Active

EDAC Inc.

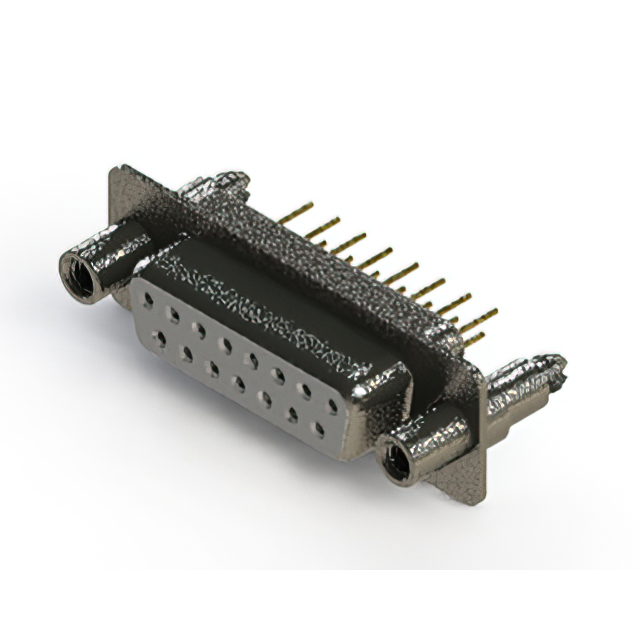

15P FEMALE STRAIGHT 2 5A -55℃~+125℃ PLUGIN D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

Documents627M,628M Series Ordering Guide Datasheet

628-M15-221-WT6

Active

EDAC Inc.

15P FEMALE STRAIGHT 2 5A -55℃~+125℃ PLUGIN D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Documents627M,628M Series Ordering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-M15-221-WT6

Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder

628-M15 Series

...

Part	Flange Feature	Shell Size, Connector Layout	Dielectric Material	Contact Type	Number of Rows	Features	Contact Finish	Contact Material	Connector Type	Termination	Material Flammability Rating	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 628-M15-323-WN6	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	White	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M15-321-LT4	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole
EDAC Inc. 628-M15-323-LT4	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole
EDAC Inc. 628-M15-323-LN3	4-40 Board Side	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M15-223-LN6	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A			Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M15-223-WN4	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	White	-55 °C	125 °C	D-Sub	5 A			Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M15-623-GN2	Housing/Shell (4-40)	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Green	-55 °C	125 °C	D-Sub	5 A	30 Áin	0.76 Ám	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M15-222-GN1	Housing/Shell (Unthreaded)	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets		UL94 V-0	15	Green	-55 °C	125 °C	D-Sub	5 A			Free Hanging (In-Line)	Nickel Plated Steel	Flash
EDAC Inc. 628-M15-221-WT6	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	White	-55 °C	125 °C	D-Sub	5 A			Through Hole		Flash
EDAC Inc. 628-M15-222-LN1	Housing/Shell (Unthreaded)	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets		UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A			Free Hanging (In-Line)	Nickel Plated Steel	Flash
