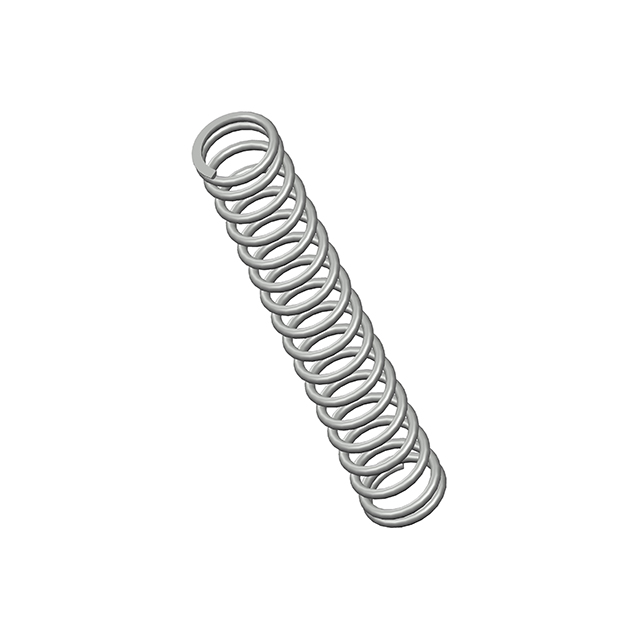

71153CS
ActiveCentury Spring Corp
COMP O= .360,L= 2.25,W= .042
71153CS
ActiveCentury Spring Corp
COMP O= .360,L= 2.25,W= .042
Description
General part information
71153CS
COMP O= .360,L= 2.25,W= .042
Technical Specifications
Parameters and characteristics for this part
| Specification | 71153CS |
|---|---|
| Diameter - Inside | 0.276 in |
| Diameter - Outside | 0.36 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 2.25 in |
| Material | Music Wire |
| Rate (lbs/in) | 9.1 lbs/in |
| Type | Compression |
| Wire Diameter | 0.042 in |
