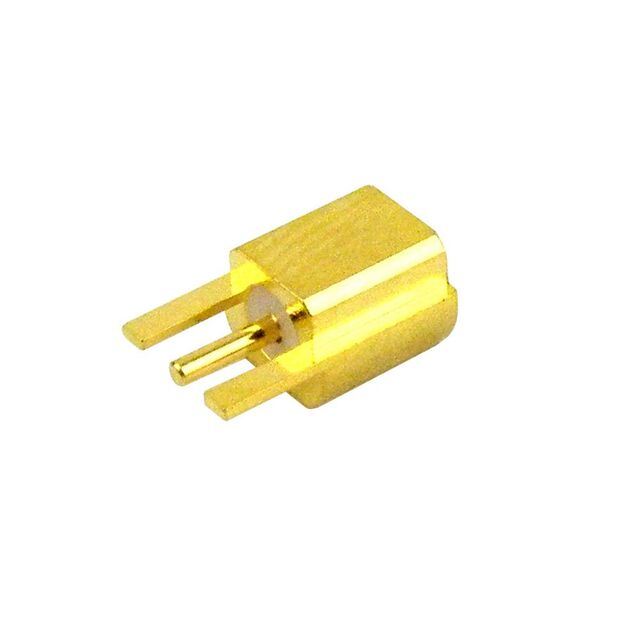

SC9582
ObsoleteFairview Microwave
CONN JACK SOLDER MMCX
SC9582
ObsoleteFairview Microwave
CONN JACK SOLDER MMCX
Description
General part information
SC9582
MMCX Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SC9582 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Cutout, Surface Mount, Board Edge |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
