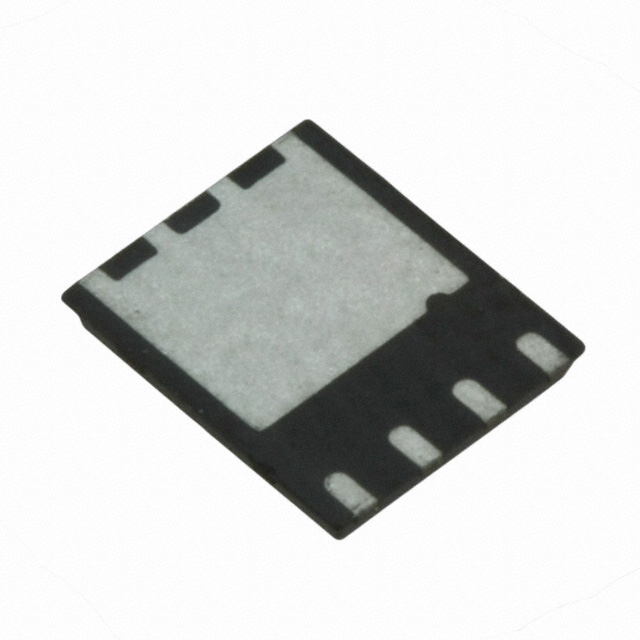

IRFH5250DTRPBF

Obsolete

Infineon Technologies

STRONGIRFET™ N-CHANNEL POWER MOSFET ; SUPERSO8 5X6 PACKAGE; 1.4 MOHM; SCHOTTKY

Deep-Dive with AI

Search across all available documentation for this part.

IRFH5250DTRPBF

Obsolete

Infineon Technologies

STRONGIRFET™ N-CHANNEL POWER MOSFET ; SUPERSO8 5X6 PACKAGE; 1.4 MOHM; SCHOTTKY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRFH5250DTRPBF

Current - Continuous Drain (Id) @ 25°C	40 A, 100 A
Drain to Source Voltage (Vdss)	25 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	83 nC
Input Capacitance (Ciss) (Max) @ Vds	6115 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power Dissipation (Max)	156 W, 3.6 W
Rds On (Max) @ Id, Vgs	1.4 mOhm
Supplier Device Package	8-PQFN (5x6)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.35 V

IRFH5250 Series

Part	Supplier Device Package	Package / Case	Power Dissipation (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Vgs(th) (Max) @ Id	Vgs (Max)	Technology
Infineon Technologies IRFH5250DTRPBF	8-PQFN (5x6)	8-PowerVDFN	3.6 W 156 W	-55 °C	150 °C	25 V	Surface Mount	4.5 V 10 V	40 A 100 A	1.4 mOhm	83 nC	6115 pF	N-Channel	2.35 V	20 V	MOSFET (Metal Oxide)
Infineon Technologies IRFH5250DTRPBF	8-PQFN (5x6)	8-PowerVDFN	3.6 W 156 W	-55 °C	150 °C	25 V	Surface Mount	4.5 V 10 V	40 A 100 A	1.4 mOhm	83 nC	6115 pF	N-Channel	2.35 V	20 V	MOSFET (Metal Oxide)
Infineon Technologies IRFH5250TRPBF	8-PQFN (5x6)	8-PowerVDFN	3.6 W 160 W	-55 °C	150 °C	25 V	Surface Mount	4.5 V 10 V	45 A 100 A	1.15 mOhm	110 nC	7174 pF	N-Channel	2.35 V	20 V	MOSFET (Metal Oxide)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	362	$ 0.83
		362	$ 0.83

Description

General part information

IRFH5250 Series

The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
