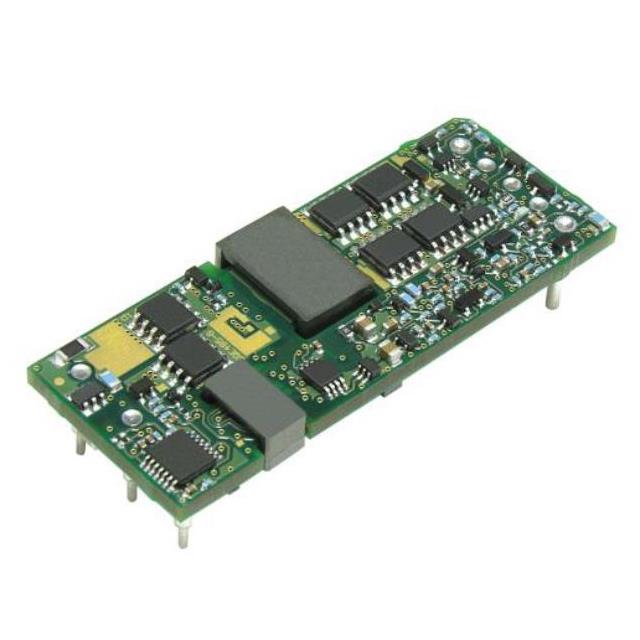

SQE48T30033-NDB0G

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 99W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 99W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SQE48T30033-NDB0G	SQE48T30033 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	30 A	30 A
Efficiency	90.5 %	90.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-DIP Module, 1/8 Brick	8-DIP Module, 1/8 Brick
Power (Watts)	99 W	99 W
Size / Dimension	-	0.9 "
Size / Dimension	-	0.41 "
Size / Dimension	-	2.3 in
Size / Dimension [x]	2.3 in	2.3 - 58.4 in
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [y]	22.9 mm	22.9 mm
Size / Dimension [y]	22.86 mm	22.86 - 22.9 mm
Size / Dimension [z]	0.37 in	0.37 - 10.4 in
Size / Dimension [z]	9.4 mm	9.4 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	3.3 V	3.3 V

DC DC CONVERTER 3.3V 99W

Part	Type	Current - Output (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Applications	Voltage - Output 1	Number of Outputs	Control Features	Features	Power (Watts)	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Bel Power Solutions SQE48T30033-NDB0G	Isolated Module	30 A	1/8 Brick, 8-DIP Module	85 °C	-40 °C	2250 VDC	ITE (Commercial)	3.3 V	1	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	99 W	Through Hole	75 V	36 V	0.37 in	22.9 mm	2.3 in	58.4 mm	22.86 mm	9.4 mm	90.5 %
Bel Power Solutions SQE48T30033-NGB0G	Isolated Module	30 A	1/8 Brick, 8-DIP Module	85 °C	-40 °C	2250 VDC	ITE (Commercial)	3.3 V	1	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	99 W	Through Hole	75 V	36 V	10.4 mm		58.4 mm		22.9 mm		90.5 %	0.9 "	0.41 "	2.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.3V 30A 36V - 75V Input
