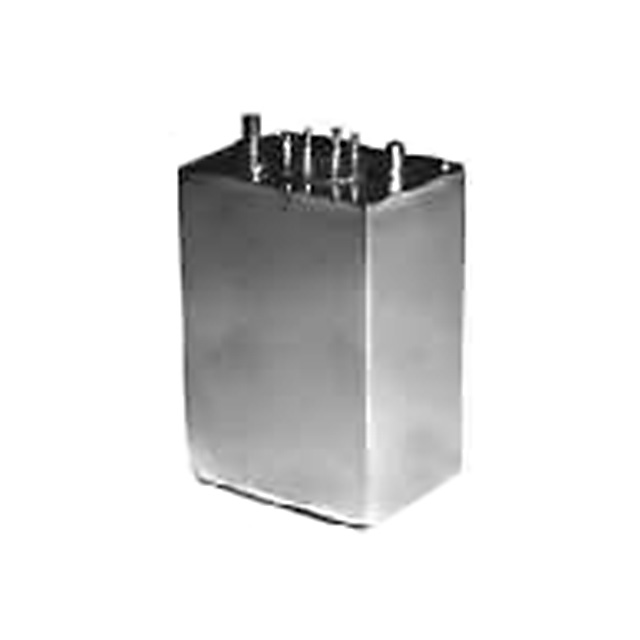

XFMR 30, 7.5/7.5 / 2.4K, 600/600
807
ObsoleteHammond Manufacturing
XFMR 30, 7.5/7.5 / 2.4K, 600/600
Description
General part information
807
30, 7.5/7.5 Impedance Primary Ohms 2.4k, 600/600 Impedance Secondary Ohms Audio Transformer 50Hz ~ 15kHz Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 807 |
|---|---|
| Frequency Range (Max) | 15 kHz |
| Frequency Range (Min) | 50 Hz |
| Frequency Response Tolerance | 0.5 dB |
| Height - Seated (Max) | 2.559 in |
| Impedance - Primary (Ohms) | 30 Ohms |
| Impedance - Primary (Ohms) Maximum | 7.5 Ohms |
| Impedance - Primary (Ohms) Minimum | 7.5 Ohms |
| Impedance - Secondary (Ohms) (Max) | 600 Ohm |
| Impedance - Secondary (Ohms) (Min) | 600 Ohm |
| Impedance - Secondary (Ohms) (Value 1) | 2.4 kOhm |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Power Level | 15 dB |
| Size / Dimension Length | 1.752 in |
| Size / Dimension Width | 1.252 in |
| Termination Style | Solder Lug |
| Transformer Type | Broadcast Quality |
| Weight | 0.5 lbs |
