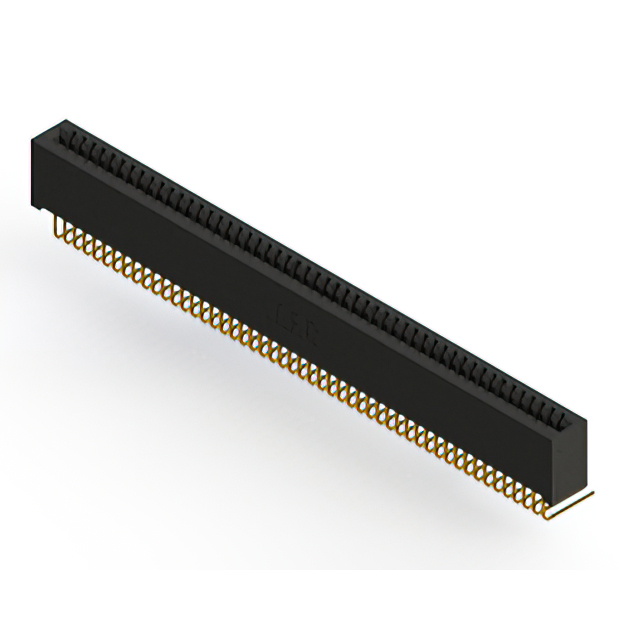

392-051-558-101

Active

EDAC Inc.

2.54MM 51P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

392-051-558-101

Active

EDAC Inc.

2.54MM 51P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-051-558-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	51
Number of Positions/Bay/Row [custom]	51
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

392-051 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Number of Positions/Bay/Row [custom]	Read Out	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Card Type	Gender	Number of Positions	Contact Type	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 392-051-558-112	2.54 mm	0.1 in	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Solder Wire Wrap	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 392-051-558-101	2.54 mm	0.1 in	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Solder Wire Wrap
EDAC Inc. 392-051-520-102	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Solder	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 392-051-544-103	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Wire Wrap	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 392-051-521-107	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Solder		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 392-051-541-104	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Wire Wrap	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 392-051-523-108	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Solder		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 392-051-520-108	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Solder		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 392-051-524-101	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Solder
EDAC Inc. 392-051-544-104	2.54 mm	0.1 in	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	10 Áin	0.25 Ám	Copper Alloy	Gold	51	Single	1	-40 °C	105 ░C	1	Black	Non Specified - Single Edge	Female	51	Cantilever	Wire Wrap	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 23.01
LCSC	Piece	1	$ 24.95
		200	$ 9.66
		500	$ 9.32
		1000	$ 9.15

Description

General part information

392-051 Series

51 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
