Description
General part information

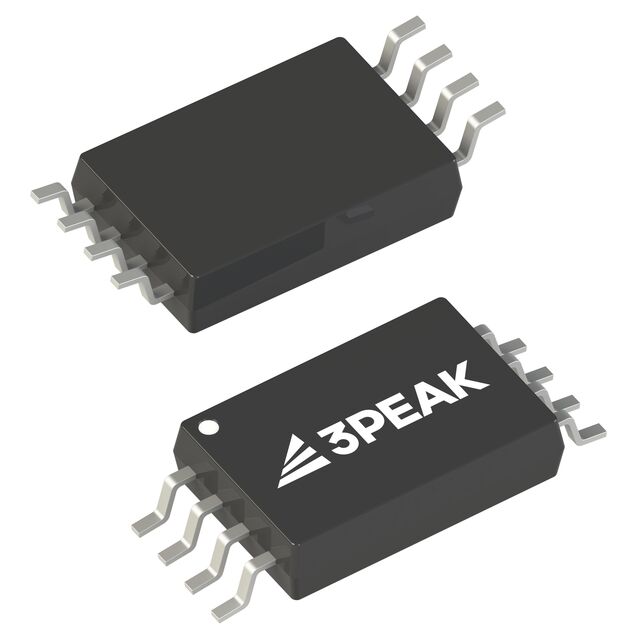

TP2582-TSR
Standard Amplifier 2 Circuit Single Ended, Rail-to-Rail 8-TSSOP
Technical Specifications
Parameters and characteristics for this part
| Specification | TP2582-TSR |
|---|---|
| Amplifier Type | Standard |
| Current - Input Bias | 25 pA |
| Current - Output / Channel | 32 mA |
| Current - Supply | 3 mA |
| Gain Bandwidth Product | 10 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Rail-to-Rail, Single Ended |
| Package Length | 0.173 in |
| Package Name | 8-TSSOP |
| Package Width | 4.4 mm |
| Slew Rate | 8 V/µs |
| Voltage - Input Offset | 100 µV |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 3 V |
