T38120-08-0
ActiveCurtis Industries

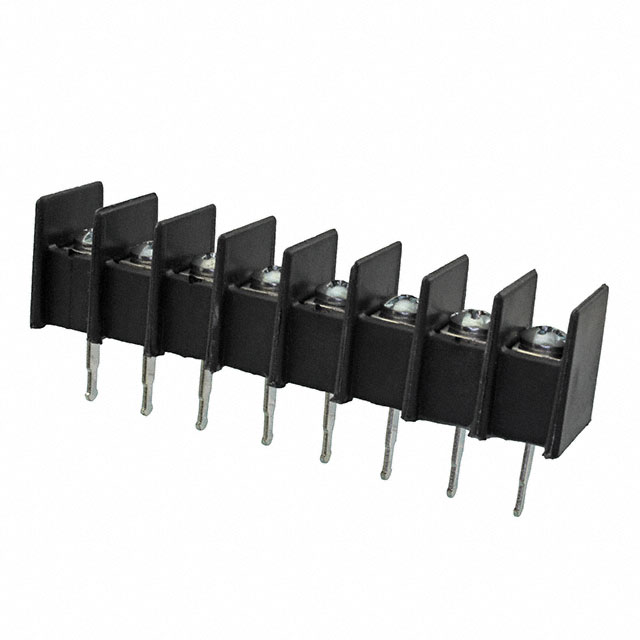

CONN BARRIER STRIP 8CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38120-08-0
ActiveCurtis Industries
CONN BARRIER STRIP 8CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T38120-08-0 | T38120 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret | Solder Turret |
| Current Rating (Amps) | 20 A | 20 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | - | 4 - 25 |
| Number of Circuits [custom] | 8 | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 8 | 4 - 25 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Nickel |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.80 | |
| 10 | $ 3.78 | |||
| 25 | $ 3.60 | |||
| 50 | $ 3.27 | |||
| 100 | $ 3.25 | |||
T38120 Series
CONN BARRIER STRIP 8CIRC 0.375"
| Part | Terminal Screw Finish | Voltage Rating | Current Rating (Amps) | Top Termination | Terminal Screw Material | Terminal Block Type | Number of Rows | Material Flammability Rating | Bottom Termination | Number of Wire Entries | Material - Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Operating Temperature | Mounting Type | Pitch [x] | Pitch [x] | Number of Circuits [custom] | Barrier Type | Number of Circuits | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries T38120-08-0 | Nickel | 300 VDC | 20 A | Screws | Steel | Barrier Block | 1 | UL94 V-0 | Solder Turret | 8 | Polypropylene (PP) | 12 AWG | 22 AWG | 105 C | Chassis, Panel | 9.53 mm | 0.375 in | 8 | 2 Wall (Dual) | ||
Curtis Industries T38120-04-0 | Nickel | 300 VDC | 20 A | Screws | Steel | Barrier Block | 1 | UL94 V-0 | Solder Turret | 4 | Polypropylene (PP) | 12 AWG | 22 AWG | 105 C | Chassis, Panel | 9.53 mm | 0.375 in | 2 Wall (Dual) | 4 | ||
Curtis Industries T38120-23-0 | Nickel | 300 VDC | 20 A | Screws | Steel | Barrier Block | 1 | UL94 V-0 | Solder Turret | Polypropylene (PP) | 12 AWG | 22 AWG | 105 C | Chassis, Panel | 9.53 mm | 0.375 in | 2 Wall (Dual) | 23 | 23 | ||
Curtis Industries T38120-25-0 | Nickel | 300 VDC | 20 A | Screws | Steel | Barrier Block | 1 | UL94 V-0 | Solder Turret | 25 | Polypropylene (PP) | 12 AWG | 22 AWG | 105 C | Chassis, Panel | 9.53 mm | 0.375 in | 2 Wall (Dual) | 25 | ||
Curtis Industries T38120-07-0 | Nickel | 300 VDC | 20 A | Screws | Steel | Barrier Block | 1 | UL94 V-0 | Solder Turret | 7 | Polypropylene (PP) | 12 AWG | 22 AWG | 105 C | Chassis, Panel | 9.53 mm | 0.375 in | 2 Wall (Dual) | 7 | ||
Curtis Industries T38120-21-0 | Nickel | 300 VDC | 20 A | Screws | Steel | Barrier Block | 1 | UL94 V-0 | Solder Turret | 21 | Polypropylene (PP) | 12 AWG | 22 AWG | 105 C | Chassis, Panel | 9.53 mm | 0.375 in | 2 Wall (Dual) | 21 | ||
Curtis Industries T38120-06-0 | Nickel | 300 VDC | 20 A | Screws | Steel | Barrier Block | 1 | UL94 V-0 | Solder Turret | 6 | Polypropylene (PP) | 12 AWG | 22 AWG | 105 C | Chassis, Panel | 9.53 mm | 0.375 in | 2 Wall (Dual) | 6 |
Description
General part information
T38120 Series
8 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
